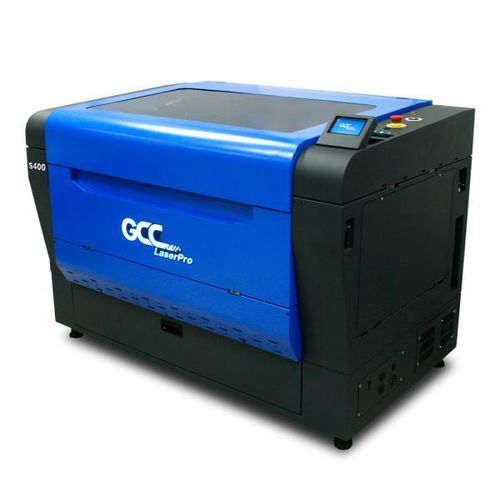

Laser engraving machine S400

plasticmetalwood

Inherit all the advantages from Spirit Hybrid, a brand new machine - S400 laser engraving machine features 3.55 m/s (140 in/s) processing speed by DC servo motor, innovative touch panel, user friendly interface and a modern good looking design.Together with SmartFLOW™ dust prevention technology and SmartLID™ easy access invention, S400 presents you the highest throughput and precise laser engraving and cutting quality. GCC S400 makes all your imaginations to life at the speed of light.CO2 & Fiber Hybrid Lasers: GCC LaserPro Hybrid technology allows installing CO2 & Fiber dual lasers in one system to expand your business from organic materials processing to direct metal laser engraving.Perfect Engraving and Cutting Throughput: With a processing speed of up to 3.55 m/s (140 in/s) and powerful DC servo motors, S400 laser engraver boosts productivity while maintaining accuracy.Pass-through Front to Rear Doors (Optional): Allows the front and rear door to open for loading extremely long workpieces, expanding business flexibility.SmartLID™ Easy Access: Easy access design from both ends simplifies maintenance.SmartFLOW™ Technology: Creates a perfect airflow to enhance the vacuum effect and remove dust completely during laser engraving.SmartACT™ (Patented): Reduces the ramping process and job running time, increasing productivity.SmartLIGHT: Built-in LED light module illuminates the working space for better visibility of engraving details.SmartSEAL™ Technology: New gantry design prevents dust; easy take-off cover for easier maintenance.Intuitive Touch Screen: 4” touchscreen for easy operation, parameter settings, and job monitoring.User friendly driver interface: Intuitive interface designed from end users' perspective.Dust Prevention: Metal panels protect key components and reduce dust entry during engraving.Stamp Mode With Shoulder Level Function: Enables easy production of professional stamps.Optional Items:SmartEYES™ CCD: High-resolution camera for easy positioning and accuracy.Rotary Attachment: Enables engraving on cylindrical or round objects (diameter 7-150 mm, length up to 650 mm, max weight 4 kg).SmartTOOL™: CorelDraw extension for process time reduction and task simplification.SmartVISION™ Pro CCD: Enhances productivity by precise location of printed graphics for contour cutting (working area 840mm x 610mm for CO2 single models).Rotary Chuck: For engraving on cylindrical/spherical objects (diameter 0.5–120 mm, length up to 410 mm, weight up to 4 kg).Stack Light Set: Visual indicator for job status (Error, Stand-by, Working).Purex Fume Extraction System: Prevents inhalation of hazardous fumes and dust, CE-compliant.Air Compressor: Oil-less diaphragm design, optimal air pressure for engraving/cutting, prevents overheating and keeps optics clean.SmartGUARD™ Fire Alarm (Patented): Ensures safety by shutting down operation in case of malfunction.Honeycomb Table: Improves cutting quality, dust/vapor removal, and fixes flexible materials for consistent results.Technical Specifications:Work Area: 916 x 610 mm (36 x 24 in.), extendable to 1016 x 610 mm (40 x 24 in.)Max. Part Size (W x D x H): All Doors Closed: 1053 x 647 x 280 mm (41.4 x 25.4 x 11 in.); All Doors Open: 1053 x ∞ x 280 mm (41.4 x ∞ x 11 in.)Table Size: 1019 x 613 mm (40.1 x 24.1 in.)Dimensions (W x D x H): 1440 x 900 x 1048 mm (56.7 x 35.5 x 41.3 in.)Weight: CO2 60~120W: 270 kg / 595 lb; Fiber 30/50W: 260 kg / 573 lbLaser Source: CO2 (10.6-μm sealed: 60~120W; 9.3-μm sealed: 60W), Fiber (30/50W), Dual (CO2 + Fiber)Cooling: Air-cooled, Operating temperature 15°-30°C (59°-86°F)Drive: Closed-loop DC servo controlMaximum Motor Speed: 3.55 m/s (140 in/s)Speed Control: Adjustable 0.1~100% (up to 16 color-linked speed settings per job)Power Control: Adjustable 0~100% (up to 16 color-linked power settings per job)Engraving Capability: 256-level gray scale image processingDistance Accuracy: 0.254 mm or 0.1% of move, whichever is greaterZ-Axis Movement: AutomaticFocus Lens: CO2 (Standard 2.0", optional 1.5", 2.5", 4.0"), Fiber (Standard 2.0", optional 4.0"), Dual (Standard 2.0", optional 3.0", 4.0")Resolution (DPI): 125, 250, 300, 380, 500, 600, 760, 1000, 1500Interface: 10 Base-T Ethernet, USB Type-A 2.0 (for storage), USB Type-B 2.0 (for computer connection)Compatible OS: MS Windows 64 BitControl Panel: 4” Touch panelSafety: Class 1, 2, 4 Laser Product (EN60825-1:2014, EN ISO 13849-1:2015, CDRH, 2006/42/EC Machinery Directive)Operation Voltage: CO2 (Below 80W: 100-240VAC, 50/60HZ, max. 15A; 80W+: 200-240VAC, 50/60HZ, max. 15A), Fiber (30/50W: 100-240VAC, 50-60Hz, Max. 8A)Fume Extraction System: External exhaust system, min. flow rate 800m3/h (CFM 471 ft³/min), 2.3kPA negative pressure
