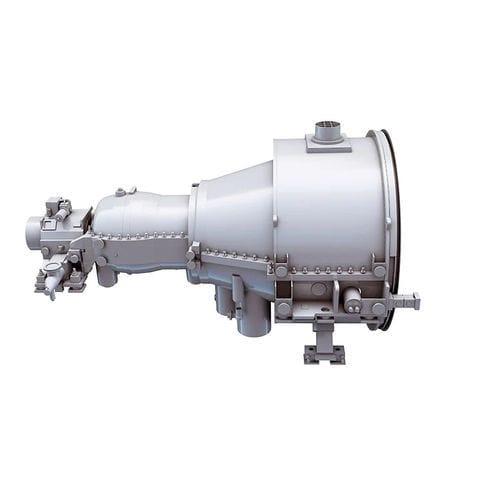

Steam turbine STF-A200

for power generation

GE Vernova's two-casing dual LP flow STF-D200 steam turbine and single-casing, axial exhaust STF-A200 steam turbine work well for both 50 Hz and 60 Hz non-reheat applications in multi-shaft and single-shaft configurations. Experience and features you can count on The STF-D200 and STF-A200 non-reheat steam turbines are suited for a wide variety of applications, from pure power production to combined heat and power. Our steam turbines are highly flexible and engineered to meet specific customer applications. Our 200 series steam turbines work well for combined-cycle conversion projects when a bottoming cycle is added to an existing simple-cycle plant to increase power output and efficiency upwards of 50 percent. Both the STF-D200 and STF-A200 are available with externally controlled extractions. Our LP moisture removal features enable reliable operation and improve LP section efficiency, and a self-synchronizing clutch improves operational flexibility in a single-shaft configuration. A closer look at our 200-series steam turbines With more than 90 units deployed in the field since the late 1990s, the STF-A200 and STF-D200 have experience in both 50 and 60 Hz environments. The STF-A200 steam turbine features a single casing configuration that ships fully assembled, enabling a four-month installation cycle from arrival on-site to turning gear operation; adaptive stage technology that controls low pressure extractions while intersections with valves are used for higher pressures; and many units (depending on machine size) are factory tested and pre-packaged to minimize installation and startup times.
