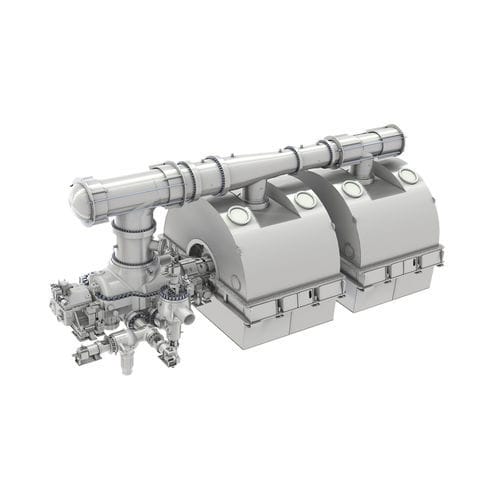

Reheat steam turbine STF 600 series

single-shaftcombined-cyclehorizontal shaft

GE Vernova’s STF600 series steam turbines deliver high performance, reliability and availability for today’s combined-cycle applications. Experience and features you can count on Our 600-Series reheat steam turbines provide industry leading efficiency, reliability, flexibility and availability for today's combined cycle applications. content-stf-a650-steam-turbine.jpg The STF-A650 steam turbine High performance in a compact footprint. The STF-A650 is a two-casing reheat steam turbine with a combined IP-LP section and a separate HP section. Main steam inlet pressures up to 2680 psi (185 bar) with main steam inlet and reheat temperatures up to 1112°F (600°C). Can be applied in both single-shaft and multi-shaft configurations, with the single-shaft configuration incorporating a clutch for enhanced operational flexibility. Features fully assembled HP and IP/LP sections, enabling installation in as little as five months. GE Vernova’s proven shrink ring design applied to the HP section reduces distortion, allowing GE Vernova’s STF-D600 steam turbines primarily support H-class and F-class gas turbine combined-cycle plants. The STF-D600 consists of a combined HP/IP section with either one or two dual flow LP sections. Main steam inlet pressures up to 2611 psi (180bar) with main steam inlet and reheat temperatures up to 1112°F (600°C). Single bearing design reduces construction time, increases power density and enhances reliability by avoiding load shifts. Available with side- or down-flow LP exhaust to provide plant layout flexibility. HP/IP Section and valves are shipped fully assembled
