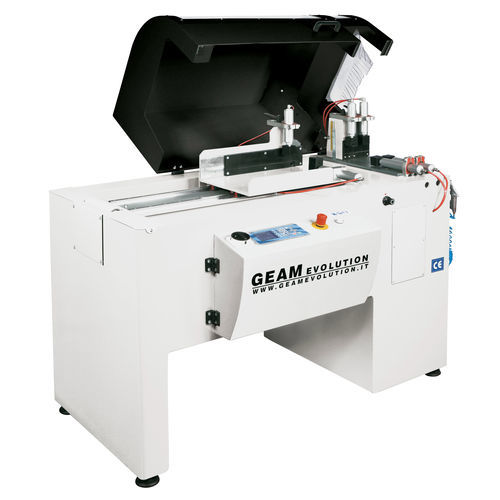

Blade cutting machine SHARK 450for aluminumfor aluminum profilesfor industrial applications
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum
- Product handled
- for aluminum profiles
- Applications
- for industrial applications
- Phase
- three-phase
- Configuration
- single-head
- Other characteristics
- automatic, for mass production, pneumatic, 90°
- Operating pressure
7 bar
(101.53 psi)- Weight
440 kg
(970.03 lb)
Description
Automatic single head cutting off machine 90° cut with automatic raising up of the blade for mass production, blade’s feeding adjustable, motorized bar feeder with electronic programmer.
Cutting operation completely automatic by means of a program managed by PLC, counterpieces function.
Carriage sliding on linear guides, full blade’s guard, spray mist lubrication system.
Threephase motor 2,2KW.
2800 rpm
Max stroke feeding unit: 620 mm
Cutting accuracy: +- 0,2 mm
OVERAL DIMENSIONS: 1500x900x1360
STANDARD EQUIPMENT
• TCT Saw Blade Ø450mm
• Pneumatic clamping set
• Venturi Spray mist unit
• Air gun
• Air filter
OPTIONALS
• Single phase motor
• TCT Saw Blade Ø450mm
