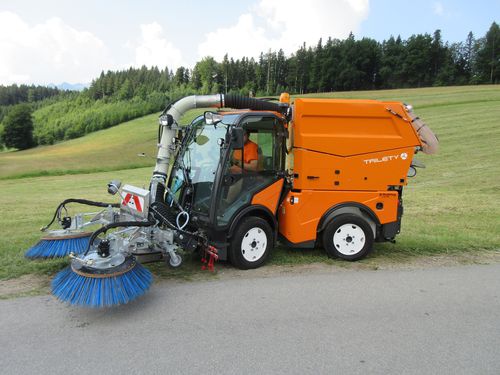

Vehicle-mount sweeper TKK series

hydraulicfor public spacesdust

The sweeper attachment type TKK is a classical „front-gathering“ sweeping system which is designed for small multifunctional carrier system like MULTIHOG, KÄRCHER, BOKI etc Hopper Made of stainless steel (EN 1.4301) with volumes from 1.0 m³ to 1.7 m³. The hopper has an integrated fresh water tank with 200l – 430l. Tipping height: 1,400mm Front-Sweeping-Unit As a standard solution the front system consists of a classical 2-brush-system mounted onto the front plate of the carrier vehicle. The 2 disc brushes have a diameter of 900mm with a stepless regulation of the brush speed and a mechanical adjustment of the ground pressure. Both brushes can be swiveled in and out separately. The suction mouth itself is made of stainless steel and equipped with 2 pivotable rubber wheels. As an option, the whole front unit can be upgraded with a third brush which can operate either on the left or right side and extends the sweeping width.
