Worm gear winch WW250-1500 2D

manualwire ropehoisting

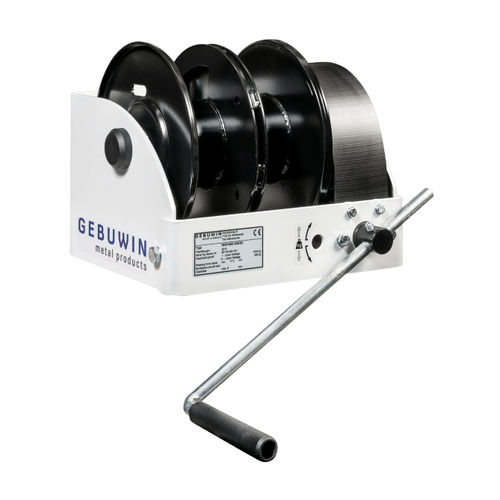

This Gebuwin worm gear hand winch has a double cable drum and a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch. Gebuwin provides special versions of up to six cable drum compartments. Product specifications - Robust construction - Primarily used for hoisting, also possible for pulling loads - The braking mechanism consists of 50% by the friction in the worm gear transmission and 50% by a load pressure brake - Static safety minimum factor 4 - Adjustable crank and recoil free - All rotating parts run in maintenance free bearings - The numbers in the product name correspond with the hoisting capacities on the first cable layer. Pulling capacity is approx. 2.5 times the hoisting capacity - Cable outlet possible upward, downward and at rear. - Standard paint finish in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
