Pneumatic actuator AP series
rotaryrack-and-piniondouble-acting

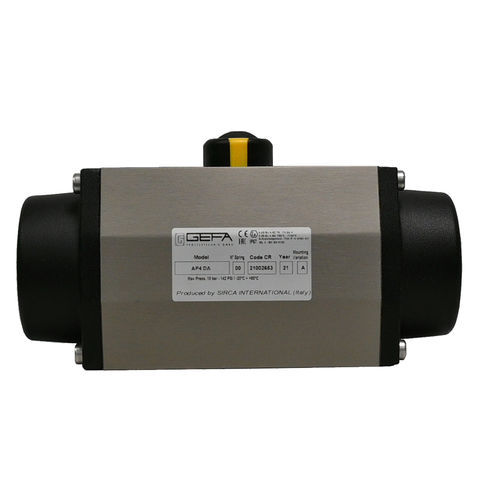

Pneumatic actuator - AP series - GEFA Processtechnik - rotary / rack-and-pinion / double-acting
Pneumatic actuator - AP series - GEFA Processtechnik - rotary / rack-and-pinion / double-acting
Pneumatic actuator - AP series - GEFA Processtechnik - rotary / rack-and-pinion / double-acting - image - 2
Add to favorites
Compare this product

Characteristics

Type
pneumatic
Movement
rotary
Technology
rack-and-pinion
Configuration
double-acting
Protection class
maintenance-free
Pressure

Max.: 8 bar
(116.03 psi)

Min.: 2 bar
(29.01 psi)

Torque

Max.: 1,704 Nm
(1,256.806 ft.lb)

Min.: 5.9 Nm
(4.352 ft.lb)

Description

Maintenance-free function due to permanent lubrication Corrosion protection through hard anodising of the housing Linear torque curve due to rack and pinion/tooth shaft principle Wear-free piston guide Standardised interfaces Option: stroke adjustment in both end positions
