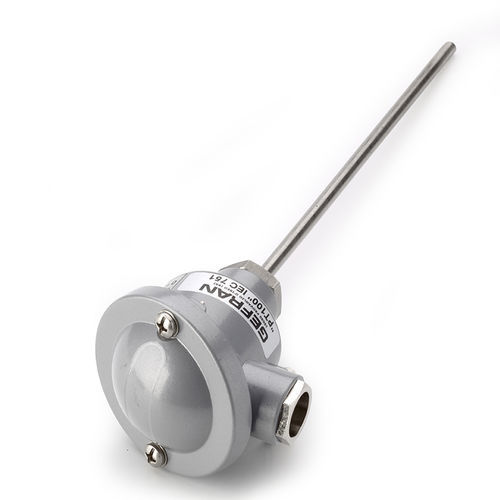

Resistance thermometer AR6M seriesPt100without display°C
Add to favorites
Compare this product
Characteristics
- Technology
- resistance, Pt100
- Display
- without display
- Units of measurement
- °C
- Communication
- 4-20 mA
- Configuration
- compact
- Temperature
Min.: -200 °C
(-328 °F)Max.: 600 °C
(1,112 °F)- Resolution
0.1 °C, 0.15 °C, 0.3 °C
(32.18 °F, 32.27 °F, 32.54 °F)
Description
MgO amplified output - General purpose
-4...20mA Transmitter
-Amplified output signal
-Temperature limits: - 200 ... + 600° C
-Tolerance: UNI 7937, IEC 751 standards:
± 0.15° C a 0° C for class A (1/2 DIN)
± 0.30° C a 0° C for class B (1 DIN)
± 0.10° C a 0° C for 1/3 DIN class
-Compact mineral insulated (MgO) resistance thermometer element (Pt100 at 0°C) and continuous metal sheath
-Application versatility
