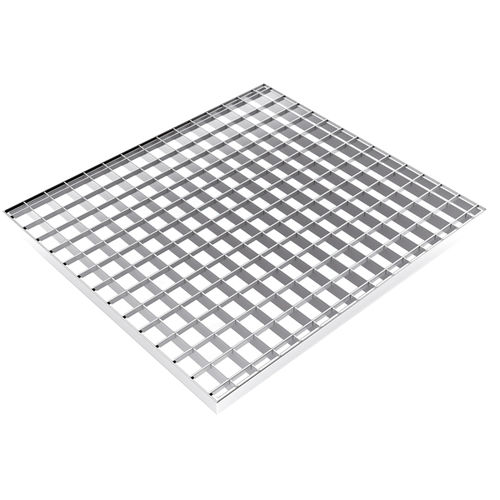

Galvanized steel grating
pressedweldedfor shelving

galvanized steel grating
galvanized steel grating
galvanized steel grating
galvanized steel grating
galvanized steel grating
galvanized steel grating
Add to favorites
Compare this product


Characteristics

Material
galvanized steel
Configuration
pressed, welded
Product applications
for shelving, for industrial flooring, for heavy loads, industry, construction, for railing, for large sun shades, for heavy loads, for the petrochemical industry, for ventilation systems, for fennel, for automotive applications, for the cement industry, for heavy loads, for the steel industry

Description

GEI press-locked gratings are composed of flat cold-laminated insert bars pressed into existing notches in bearing bars. They are manufactures using techniques that guarantee a constant production quality (manufacture according to RAL GZ638) and are typically made from S235JR steel. Commonly used for manufacturing technical walkways and staircase steps, it is also used for aesthetic elements such as sun-breaker and privacy screens, as well as in construction for sections of façades, fencing and solid balustrades. The mesh spacing is defined in accordance with the standards and loads that must be respected: For a BB thickness of 2-3 mm: The BB spacing is typically a multiple of 11.11. The IB spacing is typically a multiple of 11.11. For a BB thickness of 4-5 mm: The BB spacing is typically a multiple of 18. The IB spacing is typically a multiple of 17. Other options are available on request. Standard height: 20-150 mm. Standard thickness: 2-8 mm. Other options are available on request. Spacer: 10 x 2 mm. Other options are available on request. Maximum length of bearer bars: 4000 mm. Maximum length of spacers: 2000 mm. S235JR steel as per EN 10025 standards.. Stainless steel 304 ( 1.4301 ). Stainless steel 316 ( 1.4571 ). Aluminium AlMg3. Other options are available on request.
