excavator bucket / tilting

Add to MyDirectIndustry favorites
excavator bucket / tilting excavator bucket / tilting


  • Applications:

    for excavators

  • Other characteristics:


  • Capacity:

    Min.: 0.18 m³ (6.36 ft³)

    Max.: 1.22 m³ (43.08 ft³)

  • Carrier weight:

    Min.: 2 t (2 us ton)

    Max.: 45 t (50 us ton)

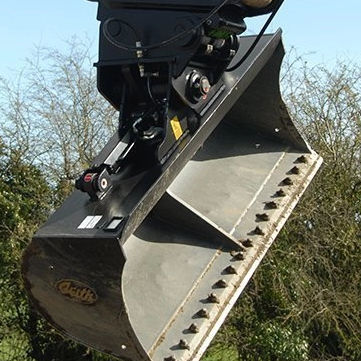

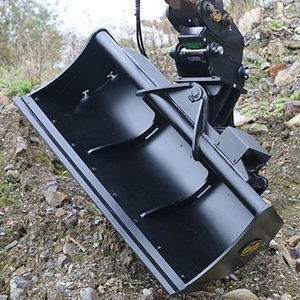

Increase the adaptability and productivity of your excavator with a Geith Tilt bucket, which offers a cost effective and long lasting solution for work from the standard ditching and grading to backfilling and light material loading and handling

Slope Finishing
Land Clearing
Waste Handling

Features & Benefits

Range from 2 to 45 tons
Optimum pivotal arrangement provides 90 degree tilt (45 degrees in either direction)
Two heavy duty hydraulic cylinders with hardened rods for excellent holding power
Spill guard and cylinder guards to protect the cylinder rod and hose fittings
Fitted with Flow Control Valves for easy adjustment of tilting speed to suit customer working preferences (for excavators bigger than 11 tons)
Reversible bolt-on cutting edge, heavy duty cast banana side cutters and wear pads as standard to ensure that the customer achieves the highest productivity by increasing the life of the bucket
Centre web plate provides increased bucket strength
Corrosion resistant high tensile pivot pins and hard inserts are used to ensure low maintenance and maximum performance
Dual mechanical stops to extend cylinder life
