Energy data-logger Tinytag Energy series

USBwith screenfor monitoring

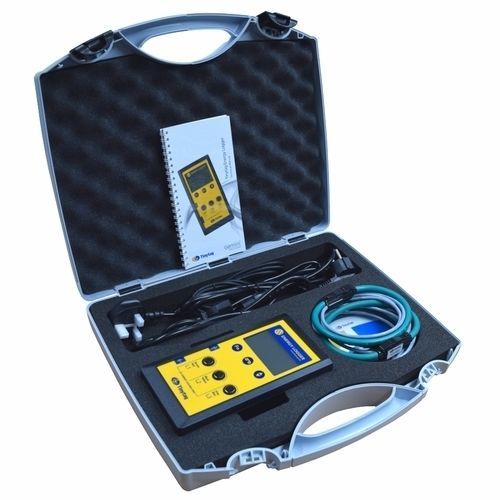

The Energy Logger is an easy to use, non-invasive device for monitoring single and three phase power supplies. It is typically used in high consumption premises such as factories, manufacturing plants, distribution warehouses, retail units and hospitals to assess energy usage and help identify areas in which to improve energy efficiency and cost effectiveness. The Energy Logger monitors voltage and current, and determines power and power factor. Peak and average values can be recorded. Voltage is measured via the standard mains lead and current is measured using non-invasive flexible coils. It can be used for spot checks or longer term recording. The kit contains everything needed to start logging, including 3 standard size clip on Rogowski coils (85mm diameter), UK and EU mains leads, a USB cable and Tinytag Explorer software. This kit is also available with large coils (175mm) : TGE-0002 Features •Energy logger with standard coils •Voltage, current & power readings •Non-invasive •Compact and hand held •Highly accurate •Records for 6 weeks •Safe and straightforward •Started without computer •Magnet for attachment The Energy Logger monitors voltage and current, and determines power and power factor. Peak and average values can be recorded. Voltage is measured via the standard mains lead and current is measured using non-invasive flexible coils. It can be used for spot checks or longer term recording. The kit contains everything needed to start logging, including 3 large clip on Rogowski coils (175mm diameter), UK and EU mains leads, a USB cable and Tinytag Explorer software. This kit is also available with standard coils (85mm) : TGE-0001
