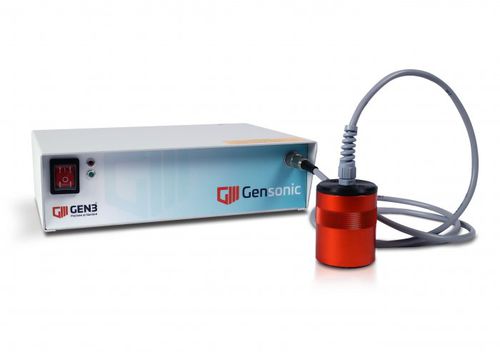

Ultrasonic cleaning system Gensonic

compactportable

The award winning Gensonic Stencil Cleaning system is the definitive stencil cleaning system. Using a 40kHz on-contact ultrasonic transducer for high efficiency cleaning of stencil apertures, It can be used either in conjunction with our Stencil Cleaning Centre’s or portable enough to be taken directly to the printer. Screen printed solder pastes tend to compact and trap particles into aperture corners and Lead Free solder pastes, that are less dense, tend to demonstrate this tendency even more. To clean effectively requires both cleaning chemistry and mechanical agitation. Direct Ultrasonic Contact cleaning is the ultimate way to clean SMT stencils. Employing a 40kHz ultrasonic generator, the single transducer head cleans with great efficiency even in tougher applications such as partially set glues. Can you afford just 1 partial or totally blocked stencil aperture? Designed, Developed and Manufactured by Gen3 at a price you won't believe. Key Features Safe and simple to use A typical 3 minute cleaning cycle No risk of stencil damage Suitable for stainless steel and plastic stencils No risk of stencil damage Cleans solder paste or SMD Adhesives Accepts both foils or framed stencils
