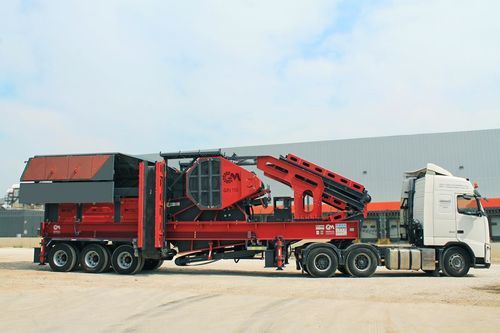

GNR - MC110 Mobile Jaw Crusher
This mobile crushing plant integrates a 110 mobile jaw crusher with independent mobile feeder, a GS1215 mobile impact crusher and a multi-layer mobile vibrating screen. Designed for on-site crushing, screening and optional washing within a mobile chassis layout.

Product Highlights

• Main equipment: Vibrating rock feeder, GPJ 110 jaw crusher, GS1215 secondary impact crusher, 2000×6000 mm 4-layer vibrating screen
• Maximum feed size: 900 mm
• Output size adjustment: 0–100 mm
• Standard final product sizes: 0–5, 5–12, 12–19, 19–40 mm (customizable)
• Nominal capacity: 200–300 tph
• Optional generator: 750 kW

Feeder System
Mobile-adapted feeder for rapid installation and robust operation. Capable of topsoil separation via bypass scalping screen and feeding mineral or recycled materials of varying hardness.

• Side covers: hinged or hydraulic options
• Wear-resistant, replaceable body linings
• Heavy-duty springs for mobile use
• Drive: single or twin vibro motors
• Adjustable feed speed via vibro drive control
• Optional automatic lubrication
• Single and double-stage bypass grid for screening

Crushing System
Primary mobile jaw crusher engineered for portable operation with maintained capacity. Suitable for hard, abrasive materials including high-silica aggregates.

• Selectable primary or secondary jaw models based on material
• Jaw adjustment for output size control
• Overload protection system
• Replaceable jaw linings and wear plates
• Spare-part savings via reversible jaw head and lower jaw options
• Optional automatic lubrication

Vibrating Screen System
High-efficiency mobile vibrating screen built for heavy-duty conditions and adaptable to all stone and mineral types.

• Synchronized operation with crusher for optimized throughput
• Boltless body components (no welding)
• Steel sieve wires, easy replacement
• Drive options: vibro motors or camshaft
• Optional hydraulic-adjustable screen angle
• Compatible with General Makina crushing & screening plants

Mobile Secondary Impact Crusher System
Portable impact crusher delivering high cubical product ratio and good performance on non-abrasive to medium-hard materials; suitable for recycling with optional magnetic unit.

• High performance on medium and hard materials
• Recycling-capable with optional magnetic unit
• High cubic product ratio
• Low energy consumption; optional soft starter
• Replaceable body liners and rotor pallets
• Hydraulic maintenance access for quick internal service
• Optional automatic lubrication and temperature sensors

Washing System
Mobile screw washer designed for portable applications, performs sand washing and sieving in parallel with the screen.

• Performance comparable to fixed screw washers
• Replaceable rubber heads on helical shafts
• Individual motor and reducer per shaft
• Optional frequency control for precise output
• Removes impurities and washes down to 1 mm
• Adaptable to General Makina washing screens; easy maintenance

Conveyor Belts System
Mobile conveyors engineered for quick assembly and transport with multiple technological options.

• Assembles in approximately 15 minutes to shipping position
• Geared motor drives; optional frequency control
• Optional top cover and dust removal units
• Discharge areas and rollers protected with rubber
• Optional automatic lubrication and cycle counting
• Optional magnetic protection system

Mobile Chassis System
Single-platform chassis carrying all equipment, compliant with highway dimensions and signaling rules for multi-site use.

• Entire plant on one platform for multi-project deployment
• Compatible with standard highway dimensions and signaling
• Standard double-axle wheel system; adjustable by weight
• Chassis: A1 quality iron and steel, reinforced joints
• Pneumatic brake control system
• Hydraulic supports enable installation in ~15 minutes

Control Panel System
Central mobile control panel managing plant operation with options for power source, control and safety features.

• Operates on standard electric supply or generator
• Compatible with 50 Hz and 60 Hz networks
• Optional emergency stop and audible/visual alarms
• Optional soft smart starter for crusher energy savings
• Optional frequency control for feeder, conveyors and screen
• Touchscreen control for operator convenience
• Optional remote control or internet tracking
• Waterproof and dustproof enclosure with lockable covers

Technical Information (Transport Dimensions / Weight / Capacity)
Jaw Crusher — Transport Dimensions (W x L x H mm): 3000 x 13500 x 4500 — Weight (kg): 55000 — Capacity (t/h): 200-300
Impact Crusher and Vibrating Screen — Transport Dimensions (W x L x H mm): 4250 x 18300 x 4500 — Weight (kg): 55000 — Capacity (t/h): 200-300

Technical Specifications

• Model: MC110
• Brand: GENERAL MAKİNA
• Main equipment: Vibrating Rock Feeder, GPJ 110 Jaw Crusher, GS1215 Secondary Impact Crusher, 2000×6000 mm 4-layer vibrating screen
• Maximum feed size: 900 mm
• Output size adjustment: 0–100 mm
• Final product sizes (standard): 0–5 mm; 5–12 mm; 12–19 mm; 19–40 mm (customizable)
• Nominal capacity: 200–300 tph
• Optional generator: 750 kW
• Transport dimensions (Jaw Crusher): 3000 x 13500 x 4500 mm
• Transport dimensions (Impact Crusher + Screen): 4250 x 18300 x 4500 mm
• Approx. unit weight: 55,000 kg (per major module as indicated)
• Feeder options: hinged or hydraulic side covers; single/twin vibro motors; optional automatic lubrication
• Crushing features: adjustable jaw, overload protection, replaceable wear parts, optional automatic lubrication
• Screen features: boltless body, steel sieve wires, vibro or camshaft drives, optional hydraulic tilt
• Secondary impact crusher features: replaceable liners and pallets, hydraulic maintenance access, optional magnetic unit and temperature sensors
• Washing: screw washer with replaceable rubber heads, individual shaft drives, frequency control option
• Conveyors: quick assembly, geared motor drives, dust control and protective options
• Chassis: highway-compatible dimensions, reinforced A1 quality steel, pneumatic brakes, hydraulic supports for fast installation
• Control panel: touchscreen, remote/internet tracking optional, 50/60 Hz compatibility, soft starter and frequency control options
