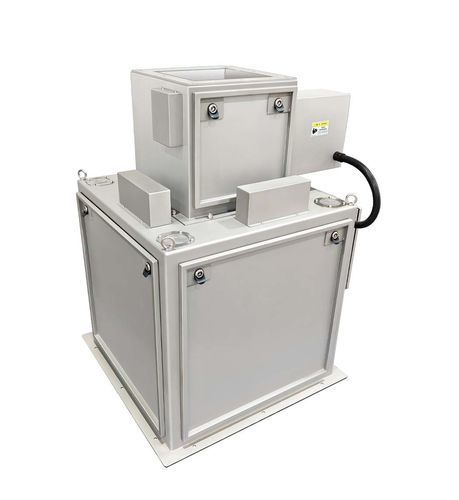

Automatic filling machine AF-50K

bagfertilizerbagging

The AF-50K weigh filler (packing scale) from GM Weigh is an upgraded weigh-filling solution designed for the fertilizer industry, providing high-speed, accurate and stable weighing and bagging of corrosion-resistant fertilizer materials.

Key features

• Upgraded structure optimized for fertilizer materials and harsh production environments.
• Servo motor control combined with an embedded vibrator for fine feeding.
• Enhanced mechanical protection and optimized hardware and adaptive algorithms for stable performance.
• IP65 protection, CE approval and high weighing accuracy as standard.

Material and craftsmanship

• SS316L full stainless-steel construction with blasted finish for corrosion resistance.

Feeding hopper upgrade

• Specially designed feeding hopper stabilizes feeding pressure and improves feeding speed for granular and prilled fertilizers.

Load cell upgrade

• Floating orientation of the load cell connection point adjusted to ensure stability at high discharge speeds.

Protection upgrades

• Dustproof film protection for the load cell to improve protection without compromising accuracy.
• Oil-seal treatment to enhance gearbox protection.
• Protective covers for load cell, motor and solenoid valve plus a special cable entry design to prevent intrusion of debris.

Algorithm & electronics

• Sampling rate: 960 SPS and upgraded adaptive algorithm for fast, accurate and stable weighing and packing.

Wide material compatibility

• Feeding gate minimum adjustment 0.015 mm (maximum 200 mm, adjustment range 1–13500) and supports a variety of fertilizer forms (granules, prills, powders).

Specification & dimension images

• https://www.gmweighing.com/admin/uploads/1765938643specification1.png
• https://www.gmweighing.com/admin/uploads/1765938661Specification2.png
• https://www.gmweighing.com/admin/uploads/1765938784dimension.png

Technical specifications

• Weighing range: 10 kg – 50 kg.
• Accuracy range: 10 – 25 g.
• Maximum speed: up to 1,500 pcs/h.
• Sampling rate: 960 SPS (samples per second).
• Construction material: SS316L full stainless-steel with blasted finish.
• Control: Servo motor control; embedded vibrator for fine feeding.
• Feeding gate adjustment: minimum 0.015 mm; maximum 200 mm; adjustment range 1–13500.
• Protection features: dustproof film for load cell, oil-sealed gearbox treatment, protective covers and special cable entry design.
• Certifications / marks: CE approved.
