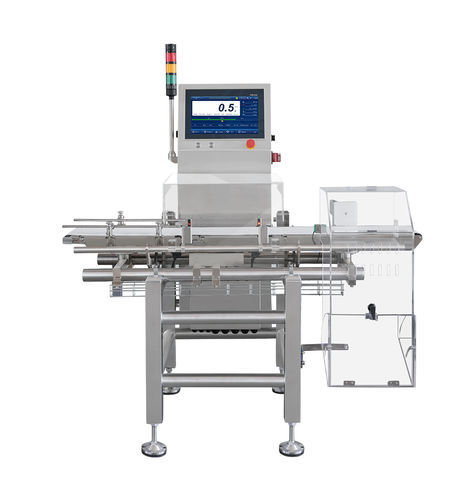

Checkweigher for the food industry GM Egret C-200

for the pharmaceutical industryfor the chemical industryfor industrial use

Overview
Egret Series Checkweigher C-200 is engineered for precise inline weight control across industrial production lines. It combines a hygienic round-tube frame and food-grade design with IP65 washdown protection to meet demanding hygienic environments. Suitable for a broad range of sectors including food, pharmaceuticals, personal care, chemicals, rubber, new energy and consumer goods.

Key data

• Weighing range: 20–1500 g
• Top speed: up to 250 pcs/min (depending on packaging size)
• Best accuracy: ±0.3 g
• Ingress protection: IP65 (washdown capable)

Product features

• IP65 washdown construction
• High accuracy (±0.3 g)
• Anti-vibration design
• EMC tested
• CE approved
• Advanced digital filtering

High-Performance Weighing

• Wide weighing range 20–1500 g for versatile product handling
• Throughput up to 250 pcs/min depending on packaging
• Consistent precision with ±0.3 g best accuracy
• IP65 protection allows wet-cleaning procedures

Stability and Durability

• Full stainless-steel construction for corrosion resistance and long service life
• High-torque sealed servo motors designed for continuous operation with minimal maintenance

Industrial Design

• Hygienic round-tube frame and smooth surfaces reduce dirt accumulation and facilitate cleaning
• Cleanable in under 5 minutes for fast line changeovers
• Tool-free conveyor and belt replacement to minimize downtime
• Quick-connect cables and modular electronics enabling maintenance within ~15 minutes
• 15-inch touchscreen for intuitive operation
• Compact footprint for easy integration into existing lines

Smart and User-Friendly Operation

• Multi-language UI and configurable permission control
• AI-based dynamic filtering and automatic optimization for stable results
• Multiple dashboards for real-time production trend analysis
• Up to 200 product recipes for fast setup
• 400 GB data storage for full traceability

Applications

• Food industry
• Pharmaceuticals
• Personal care
• Chemicals
• Rubber
• New energy
• Consumer goods

Specifications

• Model: GM Egret Series Checkweigher C-200
• Weighing range: 20–1500 g
• Top speed: up to 250 pcs/min (depending on packaging size)
• Accuracy: ±0.3 g (best)
• Ingress protection: IP65 (washdown capable)
• Construction: full stainless steel
• Design: hygienic round-tube frame, food-grade design
• Drive: high-torque sealed servo motors
• Maintenance: tool-free conveyor/belt replacement; quick-connect cables; modular electronics (maintenance within ~15 minutes)
• User interface: 15-inch touchscreen
• Software: AI-based dynamic filtering, automatic optimization, multi-language, permission control
• Data: up to 200 product recipes, 400 GB storage for traceability
• Other: anti-vibration features, EMC tested, CE approved, advanced digital filtering
