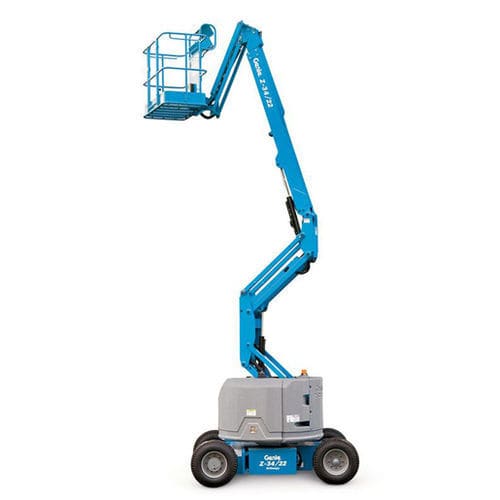

Mobile articulated boom lift Z®-34/22 DC

electrichydraulicfor industrial applications

The Genie® Z®-34/22 DC electric articulating boom lift offers quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles and access overhead work from aisles and other congested areas. Overview Zero tail swing and zero front arm swing in stowed and raised positions allow for work in tight spaces Compact chassis for narrow aisle access 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers 180° hydraulic platform rotation and self-levelling platform for easy operation Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
