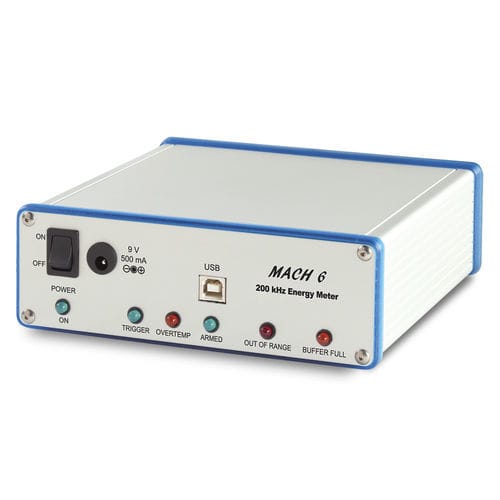

Joulemeter MACH 6

UP TO 200 KHZ PULSE-TO-PULSE Measure every pulse, with no sampling, at high rep rates, up to 200 kHz CAPTURE AND STORE UP TO 4 MILLION PULSES Store 40 seconds of data at 100 kHz TRACK MISSING PULSES AND PULSES BELOW THRESHOLD Know how many pulses were missed or that didn’t make the energy threshold with this unique pulse feature SEVERAL HEADS TO CHOOSE FROM Silicon, InGaAs and pyroelectric heads for a broad wavelength and energy range ANALOG MODULE AVAILABLE Use our fast M6 detectors with the APM and an oscilloscope for fast analog energy measurements FULL-SPEED USB 2.0 CONNECTION Ensures high data rate transfer and fast operation USER-FRIENDLY SOFTWARE WITH MANY DIAGNOSTIC FEATURES • Live mode, strip chart, histogram and statistics displays • FFT display of pulse energy data for temporal diagnostics • Life test mode to automate laser testing Measure every pulse at up to 200 kHz with MACH 6. Measure with 12-bit digital accuracy and capture up to 4 million pulses in real time. Our MACH 6 joulemeter is the only instrument in the world that performs at this speed, and with this precision. It is designed to support our full complement of fast energy probes that include silicon, InGaAs and pyroelectric detectors. Measure from pJ to mJ and from 0.35 to 2.5 µm. Using the M6-SI detector and the M5-UC-QED accessory, you can make relative measurements at 266 nm. INSTRUMENT CONTROL SCREEN Our powerful LabView application software includes many unique control and diagnostic features. The instrument control screen, shown on the left, is used to set up the operation of the MACH 6, including range, trigger, wavelength, and more.
