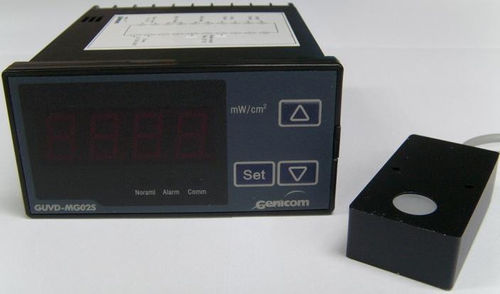

UV radiometer MG02 series
Add to favorites
Compare this product
Characteristics
- Options
- UV
Description
- Fixing method : Panel Insertion
- Power : AC 100 ~ 240V (50/60Hz)
- Display : Absolute Optical Power (Max. 100 mW/cm2)
- Output
- 2 Relay (NO&COM, NC&COM)
- 4-20 mA Current (Option)
- RS485 Communication (Option)
- Size : 96 mm X 48 mm X 108 mm
- Operating Temperature
- Display : 0 ~ 50 C
- UV Sensor Probe : -30 ~ 85 C
- Cable length : 5 m (standard)
- Detection Range
- UVV : 230 ~ 395 nm
- UVA : 220 ~ 370 nm
- UVB : 220 ~ 320 nm
- UVC : 220 ~ 280 nm
- UV Purification (Water, Air)
- UV Curing
- UV Lamp/LED monitoring
