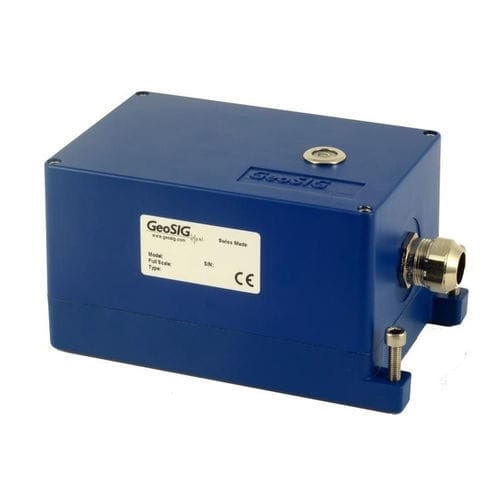

3-axis seismometer VE-2x

1-axis2-axisfor civil engineering

The VE Velocity Sensors are engineered for consistent performance over a long lifetime. Advanced computerised testing, manufacturing techniques and quality control are used in the production process to provide both, the uniform parameters and the rugged qualities necessary in modern velocity sensors. The sensor module has been proven world-wide for many years in different applications. The symmetrical rotating dual coil construction minimises the force on the spring arms. The use of precious metals ensures optimum electrical contact and a long operating life. The VE Velocity Sensors operate from a wide range of input voltages and can be used for a variety of civil engineering and general vibration measurement applications. The VE-21-H is uniaxial horizontal, the VE-21-H a uniaxial vertical and the VE-23 is a triaxial velocity sensor. The VE Velocity Sensors are housed in a very compact 195 x 112 x 95 mm case. The sealed cast aluminium housing contains a MS style connector or a sealed cable inlet. The housing also incorporates a single bolt mount with three levelling screws.
