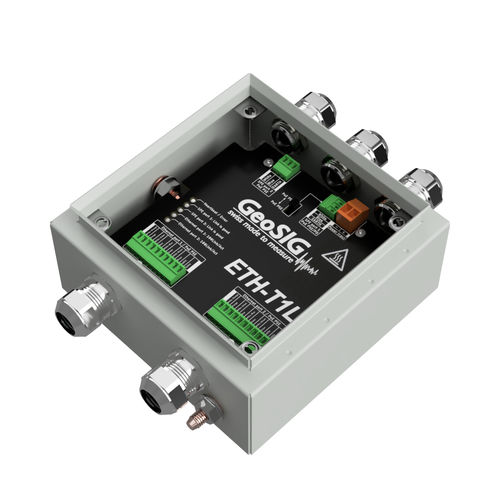

Managed Ethernet switch module ETH-T1L

2 porthousedIP66

Based on the new 10BASE-T1L standard, the ETH-T1L module is an innovative technology and ethernet switch for fast data communication over a long distance. This ground-breaking solution provides a single-pair cable-based Ethernet infrastructure for data and power over 1,200 meters. It is an ideal solution for connecting accelerographs, recorders, and other data-intensive devices in vast installation settings allowing data transmission at speeds up to 10 MBps. The cost-effective cable and the simplicity of the wiring are the highlights of ETH-T1L, which empower and extend the capabilities of GeoSIG products, such as ela and albris. 10BASE-T1L Cables: 1x2xAWG18 (Data + Power) for max 8 devices; 1x2xAWG22 (Data + Power) for max one device <5W; 1x2xAWG24 (Data Only) Recommended cable type: Compliant with IEC 61156-13 or IEC 61156-14 Ethernet Link Cable: Min 2x2xAWG24, Cat5e or bet
