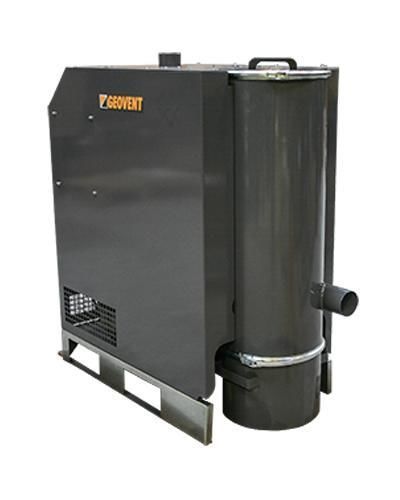

Dry vacuum unit HVU Lite

industrialcompactautomatic

Short overview
The HVU Lite is a compact high vacuum unit with a cyclone pre-separator and antistatic cartridge filter for dust extraction from grinding, brake dust, welding and general cleaning. Designed for small workshops, it supports up to 4 simultaneous extraction outlets and is intended for intermittent operation of approximately 6 hours per day.

What do you get?

• Compact high vacuum unit with cyclone pre-separator.
• 99.9% antistatic cartridge filter (approx. 5 m² filter area).
• 16-litre collection bucket for safe and easy dust disposal.
• Suitable for extraction from grinding, brake dust, welding and general workplace cleaning.
• Low noise level: 74 dB(A).
• Supports up to 4 simultaneous extraction outlets.
• Optional: automatic filter cleaning (compressed air) and automatic start/stop system.

Product information
The HVU Lite integrates a cyclone pre-separator with a high-efficiency antistatic cartridge filter to separate and filter fine dust particles effectively. The antistatic cartridge filter provides approximately 5 m² of filter area and achieves 99.9% filtration efficiency. Compact dimensions allow installation in confined workshop spaces and the unit is intended primarily for indoor use in small industrial or automotive workshops.

Optional expansions and variants include automatic filter cleaning using compressed air (requires 3.5–5 bar clean, dry air) and an automatic start/stop function. Model variants include HVU Lite 300 and HVU Lite 300 FRQ, the latter offering options such as overload protection and frequency inverter control for optimized performance. The unit has 100 mm duct connections on the cyclone front and top for flexible system integration.

Technical data (table)
Material: Powder-coated steel
Installation: Indoor
Max. air volume: 562 m³/h
Max. pressure: 25,000 Pa
Voltage: 3×400 V
Current: 15.5 A
Power: 7.5 kW / 9 kW
Frequency: 50/60 Hz
Dimensions (LxWxH): 545 x 1,040 x 1,105 mm
Weight: 140 kg

Specifications / technical details

• Filtration efficiency: 99.9% antistatic cartridge filter
• Filter surface area: ~5 m²
• Collection bucket capacity: 16 litres
• Maximum air volume: 562 m³/h
• Maximum pressure: 25,000 Pa
• Motor power options: 7.5 kW or 9 kW
• Voltage: 3×400 V, Frequency: 50/60 Hz
• Rated current: 15.5 A
• Noise level: 74 dB(A)
• Connections: 100 mm duct connections (front and top of cyclone)
• Intended use: indoor, small workshops (up to ~6 hours/day)
• Supports up to 4 simultaneous extraction outlets
• Optional features: automatic filter cleaning (3.5–5 bar compressed air), automatic start/stop, overload protection and frequency inverter control on some variants (e.g., HVU Lite 300 FRQ)
• Dimensions (LxWxH): 545 x 1,040 x 1,105 mm
• Weight: 140 kg
