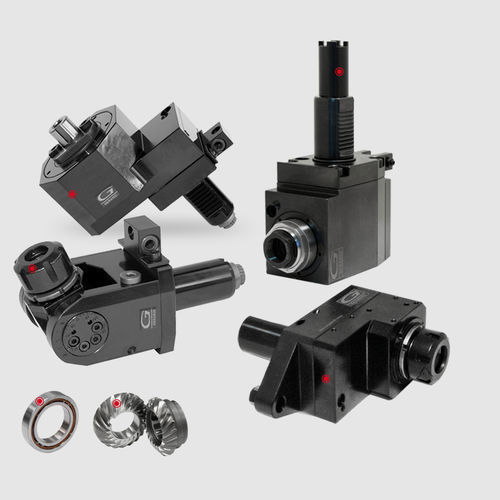

VDI driven tool

BMTDINMazak

Driven tools for CNC turning centres allows milling, drilling and tapping operations on the lathes without additional parts handling. Also in this case Gerardi can supply a wide range of types in order to equip the CNC lathes and turrets of the most popular builders on the market with an unbeatable price/quality ratio. MAIN BODY Re-designed main body to improve rigidity and reduce vibration. Specially treated corrosion resistant steel body INTERNAL COOLANT All the driven tools, can be supplied with coolant feed through the spindle with rotating distributor up to 70bar COUPLING Interchangeable couplings for the different Haas turret GLEASON GEARS Gleason computer based calculations for the Gleason cut spiral bevel drive gears with ground teeth in order to guarantee a bigger torque. BEARINGS Angular contact preloaded ball bearings of precision class ABEC 9. OPTIONS HIGH SPEED There is also the possibility of speed increaser from 2 to 4 times thus adapting the Rpm of the turret drive to the speed of today's cutting tools. The epicyclic speed increaser system (a system of satellite gears) is self contained in the standard head overall dimensions and guarantees the same standards of quality and reliability. MULTIPLE OUTPUTS All the driven tools, with the exception of those with adjustable angle, can be supplied with double or multiple output even of the same dimension. Multiple outputs can be opposite or with the same direction. TAPPING For tapping operations all driven tools can be equipped with axially compensated collets ET-1 interchangeble with the standard ER collets according the international standard DIN 6499.
