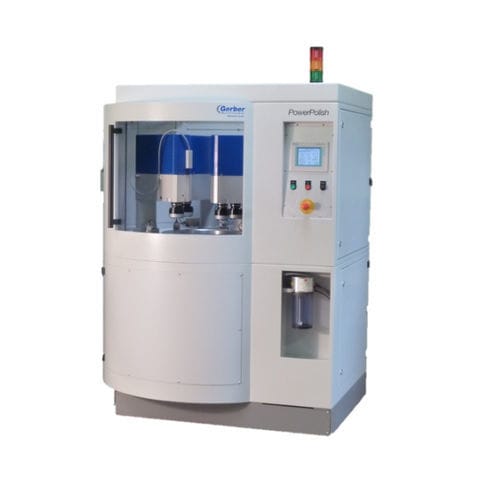

Metal polishing machine PowerPolish

for ceramicsindustrialsurfacing

The innovative PowerPolish is the known solution on the market for polishing hard and super-hard materials. Polishing performance is certainly the most important feature but maintaining or creating highly accurate flatness is an outstanding characteristic. To achieve maximum output, the PowerPolish can be equipped with up to four quills. This increases the output capacity by up to 100% compared to conventional plant solutions. The speciality of the machine is the integrated overtwisting of the polishing wheel. The disc can be machined in a plane, concave, convex or conical shape according to the requirements. The plant is capable of producing flatness of 0.001mm on a diameter of 30mm. A peak value in the machining of ultra-hard materials as sapphire, tungsten carbide, carbide, and ceramic. Maximum productivity Solid construction ensures high accuracy Maximized stiffness / highest precision Effective cooling of the polishing wheel enables short cycle times with high stock removal rates Double the output comparing «PP400» Ability to automate inclusive data management (industry 4.0) Main areas The PowerPolish face polishing machine is used for polishing very hard materials as sapphire, tungsten carbide, carbide, and ceramic. in compliance or to generate highest flatness Characteristics of the machine The modular design enables user-specific solutions Due to the choice of polishing wheel alloy, the machine processes a wide range of materials and is used for everything from maximum materials removal to maximum surface quality. There is the possibility of mechanical or chemical polishing Fully integrated control head with 99 programs
