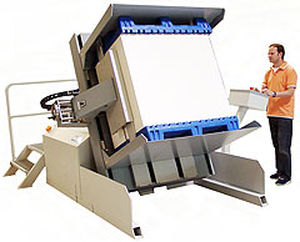

Stationary pile turner SWH-SA series

with jogging system

For semi-automatic mode of operation with high pile throughput by programmable operation. Installation without protective fences, as the hydraulic movements are carried out by pressed push-button. Fully automatic airing programs with automatic start and stop. The pile turner is equipped for 3 working cycles, selectable at the control desk: • Turning the paper/board pile • Airing, aligning and jogging the pile • Airing, aligning, jogging and turning the pile Adjustable and programmable airing parameters: • Measure of platform opening in airing position • Number of air jet travels between the platforms • Air volume • Speed of air jets • Jogging intensity • Holding or compressing the pile Equipment: • Powerful airing • Pressure control flaps • Aligning gauge with automatic-pneumatic pile height adaptation • Jogging • Control desk - slewable to the front and rear side of the pile turner • Regulation of air volume at the control desk • Adjustment for "holding the pile" or "compressing the pile" • Touch-screen-display for operation and programming incl. program memory for repeat jobs and indication of error messages Model - - SWH-SA 125 RLA (175) - SWH-SA 155 RLA - SWH-SA 180 RLA Max. sheet size - mm - 800 x 1200 - 1060 x 1450 - 1220 x 1650 Min. sheet size - mm - 500 x 600 - 500 x 600 - 500 x 600 Max. pile height - mm - 1750 - 1600 - 1600 Min. pile height - mm - 930 - 830 - 830 Platform width - mm - 1250 - 1550 - 1800 Number of air jets - - 2 - 4 - 4 Carrying power - kg - 1200 - 1800 - 1900
