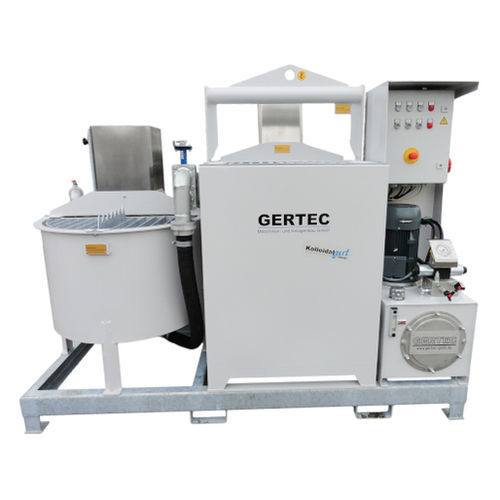

Civil engineering grout plant IS-100-K-E

for tunnel

Technical Data / Performance Data • Effective mixer volume 280 l • Mixing water minimum 90 l • Mixer filling level (bag loading) 1050 mm • Buffer tank volume 1000 l • Flow rate 0 - 90 l/min, continuously adjustable • Solids grain size max. 2 mm • Pressure connection1“ IG alternatively Victaulic 2“ • Water connection Storz C 1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling • Cleaning connection DN 20 Geka-claw coupling • Power connection CEE-plug 63 A, 5-pole • Power input approx. 21 KW • Voltage 400 V; 50 Hz • Dimensions 2,5 x 1,2 x 2,15 m ( L x W x H) • Weight approx. 1000 kg Application areas: • Micro tunnelling • Pipe jacking • Cavity filling Mixing of : • Bentonite slurries • Insulation slurries • Fly ash slurries
