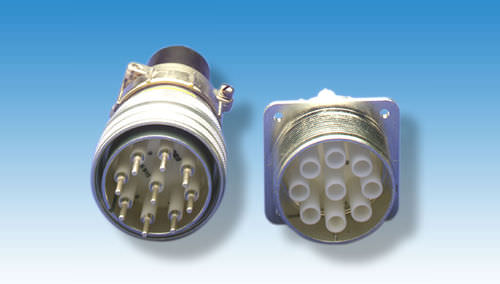

RF connector Series-M

USBcircularhigh-voltage

The M-Series features multi-pin high voltage connectors designed in a compact screw housing. These operate at a maximum of 12 kVDC (voltage) and 30 A (current), equipped with up to 9 HV contacts in square flange mounting. This series also offers models integrated with LV contacts and safety interlock circles. The multi-pin High Voltage Connectors of Series-M are anchored in a firm screw-housing, designed for operating voltages up to 12 kVDC / 30 A and can be equipped with up to 9 coded contacts. Both sides of the connection can be configured as plug or socket while cable-sockets can be angled and equipped with an EMC-gland bushing. One or more leading contacts can be assigned to execute a starting sequence, an earth connection or confirm a safety loop.
