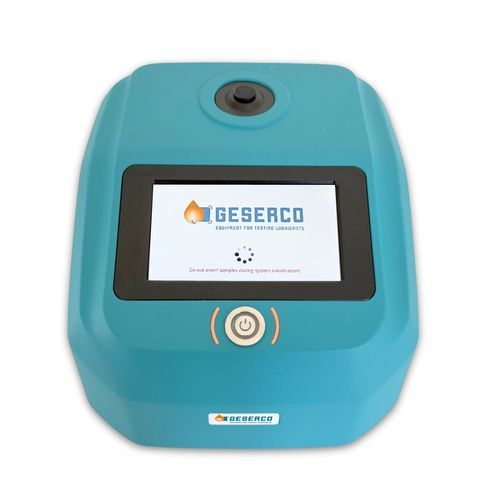

Iron content analyzer FWTest™

oilgreaseiron

Product Overview
The FWTest™ Kit is a high-precision portable analyzer designed for measuring the concentration of ferromagnetic wear debris in oil. It is ideal for monitoring the condition of lubricated equipment in various industries, enabling fast, reliable, and on-site preventive maintenance.

Industries Concerned

• Automotive
• Rail
• Marine
• Navy
• Power production
• Mine
• Aerospace
• Industry
• Analysis service

Key Features

• Method derived from the ASTM D8120 standard
• Measures ferromagnetic particles in lubricants and hydraulic fluids (oils and greases)
• Designed for marine and industrial applications
• Fast and accurate measurement: result displayed in less than 2 seconds
• Built-in trend monitoring for comparative analysis
• Electromagnetic induction technology
• Simple operation via 5-inch high-resolution touchscreen
• Built-in rechargeable battery: up to 5 hours of autonomy
• Data storage and export via USB
• Reliable and repeatable on-site analysis

Ideal for Marine Engine Condition Monitoring
With sensitivity in the ppm range, the FWTest™ Kit enables early detection of wear particles in marine engine cylinder lubricating oils. It helps optimize engine oil feed rates, reducing oil consumption and preventing catastrophic damage due to insufficient lubrication. Used with the GESERCO IT9002 kit for total iron measurement, it provides comprehensive monitoring of marine engine condition and prevention of cold corrosion and abrasive wear.

Predictive Maintenance Tool
Monitoring ferromagnetic debris in industrial oils, hydraulic fluids, turbine oils, and greases is a key indicator for condition-based maintenance. The FWTest™ Kit detects metallic particles from mechanical wear (gears, bearings, shafts, etc.), indicating abnormal friction or early tribological failure. Its high sensitivity (detecting a few ppm) allows anticipation of internal damage, optimizing maintenance cycles and preventing unplanned downtime.

Intuitive Use
The high-resolution touchscreen and multilingual interface make the FWTest™ Kit accessible to all personnel, including non-specialists. Results are displayed instantly in ppm, with a trend graphic for wear evolution. Data can be saved, exported, or printed in a single operation, supporting daily use and enhancing decision-making in predictive maintenance.

Features
Range
0 to 5500 mg/L (ppm)
Sensitivity
1 mg/L (ppm)
Oil sample required
Oil: 2 ml / Grease: 2 g
Temperature range
0 to 50 °C

• Case: 46 x 37 x 19 cm - 7 kg
• Device: 21 x 24 x 15 cm - 2.75 kg
• Screen: 5-inch touchscreen 1280 × 720 pixels
• Memory: 32 Go
• Battery: 3400 mAh (5 hours of autonomy)
• Charger: AC 100–240V / DC 12.6V, 2A
• Interfaces: 2 USB ports, CSV export, software upgrade

Product code
FWTest™ Kit: IT9003

Complementary test
Total iron test kit: IT9002

Technical Specifications

• Measurement range: 0 to 5500 mg/L (ppm)
• Sensitivity: 1 mg/L (ppm)
• Sample required: Oil 2 ml / Grease 2 g
• Operating temperature: 0 to 50 °C
• Case dimensions: 46 x 37 x 19 cm, 7 kg
• Device dimensions: 21 x 24 x 15 cm, 2.75 kg
• Screen: 5-inch touchscreen, 1280 × 720 pixels
• Memory: 32 GB
• Battery: 3400 mAh, up to 5 hours
• Charger: AC 100–240V / DC 12.6V, 2A
• Interfaces: 2 USB ports, CSV export, software upgrade
