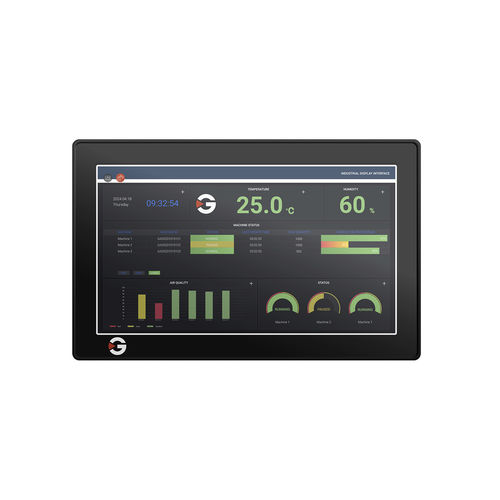

PCAP touchscreen panel PC InduSmart® Panel-PC BlackLine

touch screenmultitouch screen7"

Overview
The InduSmart® Panel‑PC Series comprises four industrial panel PC lines (BlackLine, RedLine, BlueLine, GreenLine) that share a consistent platform logic. Each line targets specific trade‑offs between energy consumption, computing performance, display size and integration depth to suit varied industrial applications.

Service & quality features

• Certifications: CE, RoHS, REACH, POP‑VO; EMC (EN 55032/55035 IT, EN 55011 industrial) and RF RED EN 301 489‑1/-17 where applicable; safety EN/IEC 62368‑1; additional regional declarations (e.g. FCC/TSCA/California Prop.65) on selected lines.
• Delivery time: BlackLine 15 WD; RedLine/BlueLine/GreenLine 30 WD.
• Repairability: Repair at GETT; all components serviceable except front glass and touchscreen.
• Support & origin: Local GETT contacts in Germany, Asia and North America. BlackLine & GreenLine: designed and made in Germany. RedLine & BlueLine: designed in Germany, GETT Certified Quality — made in China.
• Warranty & availability: Statutory warranty 2 years; long‑term availability example: BlackLine up to 7 years form‑fit‑function; other lines documented per model.

Processor & architecture

• BlackLine: x86 Intel Core i5 / Celeron — example 1.60 GHz, 4 cores (8 logical); RAM 8 GB DDR4‑2400; Storage 128 GB SSD; OS: Windows 10/11 Pro.
• RedLine: x86 Intel Core i5‑1235U — base 1.3 GHz / max 3.3 GHz; RAM 8 GB DDR4‑3200 (up to 32 GB SO‑DIMM); Storage 128 GB SSD (NVMe M.2 2280); OS: Windows 11 (optional license).
• BlueLine: x86 Intel Celeron J6412 — quad core 2.0–2.6 GHz; RAM 8 GB DDR4‑3200 (SO‑DIMM, up to 32 GB); Storage 128 GB SSD (NVMe); OS: Windows 11 (optional license).
• GreenLine: ARM Cortex‑A55 — 1.6 GHz (up to 2.0 GHz); RAM 4 GB; Storage 32 GB (64 GB optional); OS: Linux (Raspberry Pi OS).

Display

• Sizes: 7.0" to 21.5" depending on line (BlackLine 18.5"/21.5"; Red/Blue 10.1"/15.6"/18.5"/21.5"; GreenLine 7.0"/10.1"/15.6"/21.5").
• Resolutions: up to 1920×1080 (FHD) depending on size and line.
• Touch technology: PCAP multi‑touch on all lines.
• Brightness & viewing angle: BlackLine up to 300 cd/m² (89°); Red/Blue 400–500 cd/m² (80–85°); GreenLine ~400 cd/m² (80–89°).

Connectivity & interfaces

• Ethernet: Black/Red/Blue 2× RJ45 GbE; GreenLine 1× RJ45 GbE.
• WLAN: 802.11ac available (BlackLine optional).
• USB: BlackLine 4× USB3.0 A + 1× USB3.1 C; RedLine 4× USB3.0 A; BlueLine 3× USB3.0 A + 3× USB2.0 A; GreenLine 1× USB3.0 A + 1× USB2.0 A.
• Serial & video: BlackLine supports 1× RS‑232/422/485 and 1× DisplayPort; Red/Blue offer 2× HDMI; GreenLine 1× HDMI.
• Other: BlackLine optional external emergency‑stop connector; audio jack on selected lines.

Mechanics & environment

• Housing: BlackLine glass/aluminium/steel; other lines aluminium front with SECC metal back (stainless optional).
• Ingress protection: IP65 front (BlackLine front IP65 / rear IP54).
• Mounting: VESA (75/100) and panel‑mount options; BlackLine VESA 100×100.
• Cooling: fanless design across all lines.
• Weight examples: BlackLine ~10 kg; RedLine 2.9–8.2 kg; BlueLine 2.6–7.0 kg; GreenLine 0.9–6.5 kg.

Environmental conditions

• Operating temperature: 0°C to +50°C (all lines).
• Storage temperature: BlackLine −10°C to +70°C; Red/Blue/Green −20°C to +75°C.
• Humidity & impact: several lines rated to 95% RH non‑condensing; BlackLine touchscreen IK07.

Power supply & power

• Input voltage: typically 24 V DC (GreenLine variants may use 12 V DC in some configurations).
• Power consumption: BlackLine ~100 W; RedLine 29–53 W; BlueLine 28–48 W; GreenLine ~20–30 W (configs vary).

Product lines & available models

• InduSmart® Panel‑PC Series — BlackLine
• InduSmart® Panel‑PC Series — RedLine
• InduSmart® Panel‑PC Series — BlueLine
• InduSmart® Panel‑PC Series — GreenLine

Technical specifications (summary)

• Target use: industrial HMI / panel PC applications with consistent platform logic across performance tiers.
• CPU: x86 (Intel Core i5 / i5‑1235U / Celeron J6412) and ARM Cortex‑A55 options.
• RAM & storage: 4–8 GB standard (some lines expandable to 32 GB); storage 32–128 GB SSD (NVMe on x86 lines).
• Displays: PCAP multi‑touch, sizes 7.0"–21.5", resolutions up to FHD.
• Ingress protection & mounting: IP65 front, VESA & panel mount, fanless.
• Compliance: CE, RoHS, REACH, EMC and safety standards; tested to IEC 60068 environmental tests.
