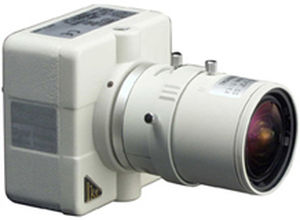

CCTV camera 752 x 582 px | ICD-505Pfor night visionfull-colorCCD
Add to favorites
Compare this product
Characteristics
- Function
- CCTV, for night vision
- Spectrum
- full-color
- Sensor
- CCD
- Other characteristics
- compact, high-speed
Description
Ultra compact high resolution color camera with Automatic Electronic Shutter, Back Light Compensation, Automatic White Balance and Chroma Killer (ACK) function at low light levels.
1/3" Interline Transfer CCD, 752 x 582 pixel
Sensor size: 4.8 mm (H) x 3.6 mm (V) (D: 6 mm)
Resolution: 520 TV lines (horizontal)
Light sensitivity: 0.3 lux (F1.2 50IRE) ACK on
Synchronization: Internal / Line lock
S/N ratio: 48 dB
Operating voltage: 24 V AC ± 10 % / 10.5 - 15 V DC
Input current: 210 mA (< 4 W), Weight: 300 g
Environmental temperature: - 10 °C up to + 50 °C
Dimensions in mm (W x H x D): 64 x 64 x 40.5
Brand: Ikegami
