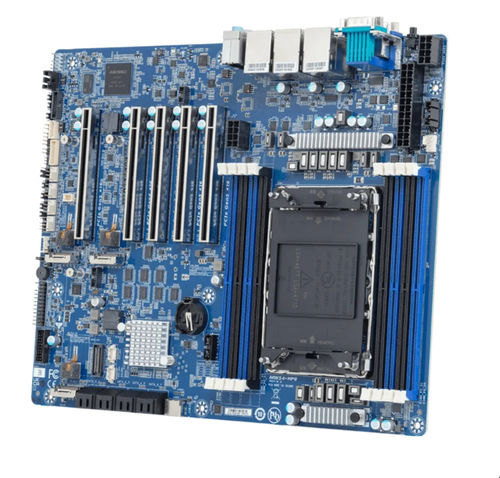

ATX motherboard MW54-HP0

Intel® XeonIntel®DDR5 SDRAM

Overview
The MW54-HP0 is an ATX workstation motherboard designed for single Intel® Xeon® 600 processors for workstations. It provides a balanced platform for high core-count CPUs, expanded I/O and DDR5 memory to support professional workloads such as engineering, AI development, data science and media creation.

Key Highlights

• Single-socket Intel® Xeon® 600 processor support (LGA 4710-2)
• 4-channel DDR5 RDIMM / MRDIMM support — 8 DIMM slots (up to 4 TB depending on configuration)
• 2 × 2.5Gb/s LAN (Intel® I226-LM) + 1 × 1Gb management LAN
• 8 × SATA 7-pin ports and 3 × M.2 2280 (PCIe Gen4 x4)
• 5 × PCIe Gen5 x16 expansion slots (CPU-provided lanes)

Platform positioning
Optimized for multi-threaded compute and advanced AI workloads (AMX-FP16 support on compatible CPUs), the platform offers increased PCIe Gen5 lanes (up to 128 CPU PCIe 5.0 lanes on select SKUs), flexible high-capacity DDR5 memory (including MRDIMM on select SKUs) and native NVMe/storage features (CPU NVMe, VROC, chipset SATA).

Ordering & Packaging
Ordering numbers: Retail 9MW54HP0MR-000-1*; Bulk 9MW54HP0NR-000-1*. Retail box contains: 1 × MW54-HP0, 1 × I/O shield, 2 × carriers, 3 × M.2 heatsinks. Bulk carton: 10 units.

Block diagram & product visuals
Product page includes block diagram and illustrations showing slot layout, M.2 locations and rear/front I/O positions for integration and system planning.

Notes
Feature availability varies by CPU SKU. Specifications and materials are for reference and subject to change by the manufacturer.

Technical specifications

• Model: MW54-HP0 (Rev. 1.x)
• Form factor (WxD mm): ATX, 304.8 × 244
• CPU: Single Intel® Xeon® 600 processor for workstations, single-socket, TDP up to 350W
• Socket: 1 × LGA 4710-2 (Socket E2)
• Chipset: Intel® W890
• Memory: 8 × DIMM slots; DDR5 RDIMM / MRDIMM; RDIMM up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC); MRDIMM up to 8000 MT/s (1DPC, select SKUs)
• Max memory capacity: up to 4 TB (depends on configuration and SKUs)
• LAN: 2 × 2.5Gb/s (Intel® I226-LM); 1 × 10/100/1000 Mbps management LAN
• Video: ASPEED® AST2600 BMC integrated graphics — 1 × VGA
• Audio: Realtek® ALC897 HD Codec; supports 2/4/5.1/7.1; 3 × audio jacks
• Storage: 8 × SATA 7-pin (from PCH); 3 × M.2 2280 (PCIe Gen4 x4, from PCH)
• RAID: Intel® SATA RAID 0/1/10/5; onboard VROC key header
• PCIe expansion: 5 × PCIe Gen5 x16 slots (CPU-provided lanes)
• Internal I/O: 24-pin ATX, 2 × 8-pin ATX 12V, CPU fan header, 4 × system fan headers, front audio header, USB 3.2 Gen2x2 header (Type-E), USB 3.2 Gen1 header, VROC connector, TPM header, PMBus, IPMB
• Rear I/O: 1 × USB 3.2 Gen2x2 (Type-C), 5 × USB 3.2 Gen2 (Type-A), 1 × VGA, 1 × Serial, 2 × RJ45 LAN, 1 × management LAN, 3 × audio jacks, 1 × ID button
• Security: TPM header (SPI) — optional TPM 2.0 kit CTM012 (module sold separately)
• Board management: ASPEED® AST2600 BMC; GIGABYTE Management Console web interface
• PSU connectors: 1 × 24-pin ATX; 2 × 8-pin ATX 12V
• Operating: 10°C to 40°C (operating); humidity 8%–80% non-condensing
• Packaging dimensions (retail): 360 × 330 × 80 mm; carton: 674 × 424 × 385 mm; qty/carton: 10
• Reference parts: Retail 9MW54HP0MR-000-1*; Bulk 9MW54HP0NR-000-1*; I/O shield 12AIO-MW53HP-10R; M.2 heatsink 12SP2-11000E-00GR
