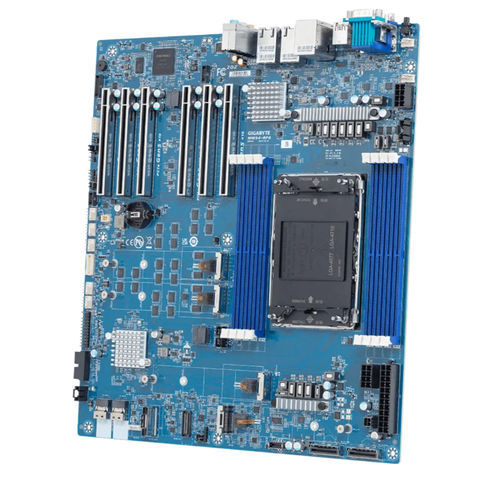

E-ATX motherboard MW94-RP0

Intel® XeonIntel®DDR5 UDIMM

Product summary

• Single Intel® Xeon® 600 Processors for Workstations
• 8-Channel DDR5 RDIMM/MRDIMM, 8 x DIMMs
• 2 x 10Gb/s LAN ports via Intel® X710-AT2
• 2 x MCIO 8i connectors with PCIe Gen5 x8 interface (requires Intel® Xeon® 690/670/650 processors)
• 1 x SlimSAS 8i connector with PCIe Gen4 x8 interface
• 2 x SlimSAS 4i connectors with SATA interface (8 x SATAIII)
• 4 x M.2 slots with PCIe Gen5 x4 interface
• Multiple PCIe Gen5 x16 expansion slots (see PCIe Expansion Slots specification)

Ordering numbers
Retail: 9MW94RP0MR-000-1*
Bulk: 9MW94RP0NR-000-1*

Highlights

• Designed for modern workstation workloads with high core density, AI acceleration and platform bandwidth
• Supports Intel® Xeon® 600 processors for workstations (Redwood Cove+ P-core architecture)
• Expanded PCIe 5.0 connectivity and faster DDR5 memory with W890 workstation chipset
• Flexible I/O and storage: multiple NVMe M.2, MCIO and SlimSAS connectors plus abundant PCIe expansion

Platform comparison (selected Xeon 600 workstation SKUs)
Header | Intel® Xeon® 690 Processors | Intel® Xeon® 670 Processors | Intel® Xeon® 650 Processors | Intel® Xeon® 630 Processors
Chipset | Intel® W890 Chipset | Intel® W890 Chipset | Intel® W890 Chipset | Intel® W890 Chipset
Core Count | 64 to 86 cores | 28 to 48 cores | 18 to 24 cores | 12 to 16 cores
Memory Channel | 8 channels (colspan) | 8 channels (colspan) | 8 channels (colspan) | 4 channels
DDR5 RDIMM/3DS-RDIMM | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s (applies across listed SKUs)
MRDIMM Support | 1DPC @ 8000 MT/s (select SKUs) | 1DPC @ 8000 MT/s (select SKUs) | 1DPC @ 8000 MT/s (select SKUs) | N/A
Memory Capacity | Up to 4 TB (select configurations) | Up to 4 TB (8 channels) / Up to 2 TB (4 channels) | Up to 4 TB (with 8 channels) | Up to 2 TB (4 channels)
PCIe 5.0 Lanes | Up to 128 lanes (higher-end SKUs) | Up to 128 lanes (higher-end SKUs) | Up to 128 lanes (higher-end SKUs) | Up to 80 lanes (example)
TDP | Up to 350W | Up to 300W | Up to 250W | Up to 180W

GPU / Accelerator support

• Supports up to 4 x dual-slot accelerators (multi-GPU configurations)
• Up to 128 CPU PCIe 5.0 lanes (depending on CPU SKU) for flexible multi-GPU and accelerator setups

Multiple storage interfaces

• 4 x NVMe M.2 (2280/22110) slots – PCIe Gen5 x4 (from CPU)
• 2 x MCIO 8i ports – 4 x Gen5 NVMe (from CPU) (requires Intel® Xeon® 690/670/650 processors)
• 1 x SlimSAS 8i – 2 x Gen4 NVMe (from PCH)
• 2 x SlimSAS 4i – 8 x SATAIII (from PCH)

Connectivity

• Dual Intel® X710-AT2 10GbE LAN (supports NCSI)
• 1 x 10/100/1000 Mbps Management LAN

Hardware security

• Optional TPM 2.0 module support via TPM header (SPI interface)
• Support for hardware-based authentication (passwords, encryption keys, certificates stored in TPM module)

Management & software

• ASPEED® AST2600 Baseboard Management Controller (BMC)
• GIGABYTE Management Console web interface for real-time health monitoring and maintenance
• GIGABYTE Server Management (GSM) suite: GSM Server, GSM CLI, GSM Agent, GSM Mobile and GSM Plugin (supports IPMI and Redfish)

BIOS / Firmware & downloads

• Multiple BIOS versions available (e.g. F03, F02) with release dates and BIOS update packages provided via support download section

Notes & disclaimers

• Feature availability may vary depending on the selected CPU SKU; certain features (MCIO 8i ports, Slot_2/6 full functionality, MRDIMM support) require Intel® Xeon® 690/670/650 processors or specific SKUs
• Advertised performance values are theoretical and depend on configuration

Caractéristiques / spécifications techniques

• Form Factor (WxD, mm): E-ATX — 304.8 x 330.2
• CPU: Intel® Xeon® 600 processors for workstations — single processor, TDP up to 350W (select SKUs); note: select functions require Intel® Xeon® 690/670/650 processors
• Socket: 1 x LGA 4710-2 (Socket E2)
• Chipset: Intel® W890
• Memory: 8 x DIMM slots; supports DDR5 RDIMM / MRDIMM; 8-channel memory per processor; RDIMM up to 6400 MT/s; MRDIMM up to 8000 MT/s (MRDIMM supported on select SKUs). Note: only 4 x DIMMs supported with Intel® Xeon® 630 processors.
• LAN: 2 x 10Gb/s LAN (Intel® X710-AT2) with NCSI support; 1 x 10/100/1000 Mbps Management LAN
• Video: Integrated in ASPEED® AST2600 — 1 x VGA port
• Audio: Realtek® ALC897 HD Audio Codec; supports 2/4/5.1/7.1; 3 x audio jacks (Audio in/Audio out/Mic)
• Storage Interface: 2 x MCIO 8i (4 x Gen5 NVMe from CPU) — requires Intel® Xeon® 690/670/650 processors; 1 x SlimSAS 8i (2 x Gen4 NVMe from PCH); 2 x SlimSAS 4i (8 x SATA from PCH); 4 x M.2 (2280/22110) PCIe Gen5 x4 (from CPU)
• RAID: Intel® SATA RAID 0/1/10/5; onboard VROC key header
• PCIe Expansion Slots: Multiple PCIe Gen5 x16 slots routed from CPU (Slot_1/2/3/5/6/7 layout); Slot_2 and Slot_6 require Intel® Xeon® 690/670/650 processors for full functionality; 2 x MCIO 8i connectors (Gen5 x8 each)
• Internal I/O: 1 x 24-pin ATX main power; 2 x 8-pin ATX 12V; 1 x 4-pin power (for PCIe slots); CPU fan header; 6 system fan headers; front audio; USB 3.2 Gen2x2 header (Type-E); USB 3.2 Gen1 x2 header; 4 x M.2 slots; 2 x MCIO 8i; 1 x SlimSAS 8i; 2 x SlimSAS 4i; VROC connector; front panel header; backplane board header; PMBus header; IPMB header; TPM header
• Rear I/O: 1 x USB 3.2 Gen2x2 (Type-C); 3 x USB 3.2 Gen2 (Type-A); 1 x VGA; 1 x Serial; 2 x RJ45 LAN; 1 x MLAN; 3 x Audio jacks; 1 x ID button with LED
• Security Modules: 1 x TPM header (SPI) — optional TPM2.0 kit (part number CTM012)
• Board Management: ASPEED® AST2600 BMC; GIGABYTE Management Console
• PSU Connectors: 1 x 24-pin ATX; 2 x 8-pin ATX 12V; 1 x 4-pin PCIe auxiliary power
• Operating Properties: Operating temp 10°C to 40°C; operating humidity 8% to 80% non-condensing; non-operating temp -40°C to 60°C; non-operating humidity 20% to 95% non-condensing
• Retail packaging: 1 x MW94-RP0; 1 x I/O shield; 2 x carriers; 4 x M.2 heatsinks; 1 x SlimSAS 4i to 4 x SATA cable (600mm). Single box dims: 409 x 355 x 78 mm; carton dims: 729 x 415 x 432 mm; quantity: 10 single boxes per carton
• Bulk packaging: 10 x MW94-RP0; 10 x I/O shields. Carton dims: 600 x 473 x 495 mm
• Reference / Part Numbers: Retail 9MW94RP0MR-000-1*; Bulk 9MW94RP0NR-000-1*; I/O shield: 12AIO-MW83RP-00R; M.2 heatsink: 12SP2-11000E-00GR; SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R
