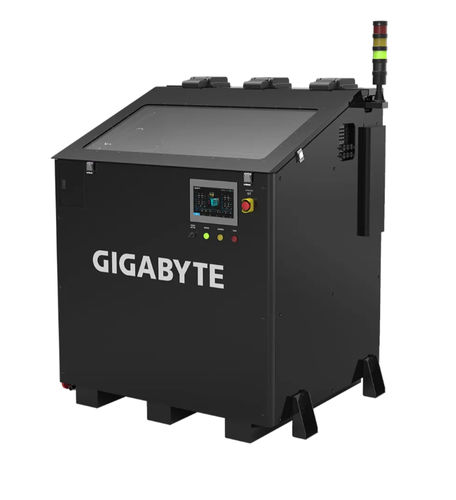

Liquid-cooled tank A1P0-EE0

plasticcooling

Product Overview

• 28U EIA tank designed for liquid cooling of high-density IT equipment
• Supports up to 28U EIA servers (24U + 2U x2)
• Minimum PUE achievable: 1.02
• Heat dissipation capacity up to 80 kW (with 25°C inlet water)
• Supports server depth up to 900 mm

Key details

• Hardware capacity: 24U + 2U x 2 (total 28U)
• Heat dissipation: 80 kW (25°C inlet); 50 kW (35°C inlet)
• Dimensions (L x W x H): 1.15 m x 1.33 m x 2.00 m
• Footprint: 1.5 m x 1.15 m
• Weight: 880 kg (without coolant)
• Coolant volume: 900 L
• Supported server depth: 900 mm
• Cooling water inlet temperature range: 20–35°C
• Water flow rate: 200 LPM
• Electrical connection: PDU 100A - 200-240/346-416Vac, 3PH, WYE
• PUE: 1.02

Ordering Information
Tank (1U server): 6NA1P0EE0MR-000-1*
Tank (2U server): 6NA1P0EE0MR-000-2*
IT Lift: 25FT3-000000-T0R
IT Dry Rack: 25FT5-000000-U0R
Drain Oil Pump: 25FT4-000000-K0R

Notes

• All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
• Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
• All trademarks and logos are the property of their respective owners.

Specifications

• Model: A1P0-EE0
• Hardware capacity: 24U + 2U x 2 (28U total)
• Heat dissipation capacity: 80 kW (25°C inlet); 50 kW (35°C inlet)
• Dimensions (L x W x H): 1.15 m x 1.33 m x 2.00 m
• Footprint: 1.5 m x 1.15 m
• Weight: 880 kg (without coolant)
• Coolant volume: 900 L
• Electrical connection: PDU 100A - 200-240/346-416Vac, 3PH, WYE
• Server depth supported: 900 mm
• Cooling water inlet temperature: 20–35°C
• Water flow rate: 200 LPM
• PUE: 1.02
• Ordering info: Tank (1U): 6NA1P0EE0MR-000-1*; Tank (2U): 6NA1P0EE0MR-000-2*; IT Lift: 25FT3-000000-T0R; IT Dry Rack: 25FT5-000000-U0R; Drain Oil Pump: 25FT4-000000-K0R
