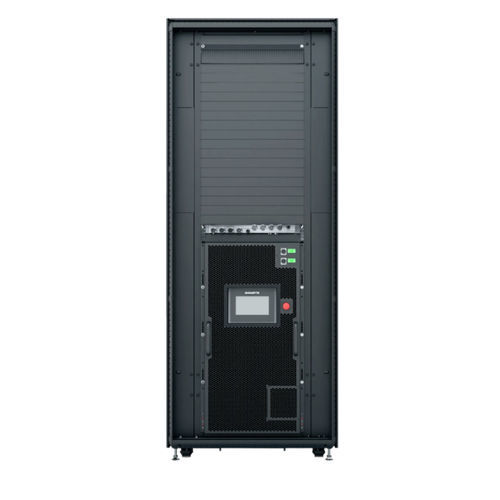

19" rack DL80-1B0
serverfor equipmentelectrical distribution

Add to favorites

Compare this product

Characteristics

Options: 19", for equipment, server, electrical distribution, electrical power supply

Product overview

Product type: DLC rack (Direct Liquid Cooling rack)
Model: DL80-1B0
Rack size: 42U; supports up to 18U EIA server modules
Cooling concept: liquid-to-air CDU integrated
Cooling capacity: up to 36 kW (page header); measured heat dissipation 24 kW at 10°C approach temperature
Redundancy: supports 1+1 redundant total power up to 43.6 kVA

Highlights

Detailed specifications

Hardware capacity: 18U (server mounting capacity within rack)
Heat dissipation: 24 kW at approach temperature 10°C; page header also references up to 36 kW cooling capacity
Dimensions (L x W x H): 1200 x 800 x 2055 mm
Total weight: 380.5 kg; weight breakdown: Rack 194 kg; PDU 6 kg ×2; CDU 155 kg; Manifold 19.5 kg
CDU power consumption (full load): 4500 W
Electrical connection: PDU — IEC 60309 63A-3P+N+PE; CDU — IEC 60320 C19 plugs ×4
Water flow rate: 7 to 36 LPM
Operating conditions: ambient temperature 0°C to 50°C; liquid temperature 0°C to 60°C
Part numbers: POC DLC Rack 9NDL801B0MR00000001*; PDU 25CRH-3K5001-S0R; CDU 25ST7-4Z0011-B0R; Manifold 25ST7-4Z000A-J2R
Optional parts: Front-access horizontal manifold kit 25ST7-4000ZB-J2R; Rear-access horizontal manifold kit 25ST7-4Z0070-J2R

Technical specifications

Model: DL80-1B0
Product type: DLC rack (Direct Liquid Cooling rack)
Rack capacity: 18U (server capacity)
Cooling capacity (page): up to 36 kW; measured dissipation: 24 kW at 10°C approach
Dimensions: 1200 x 800 x 2055 mm (L x W x H)
Total weight: 380.5 kg
CDU power consumption: 4500 W (full load)
Electrical connectors: PDU — IEC 60309 63A-3P+N+PE; CDU — IEC 60320 C19 ×4
Water flow rate range: 7–36 LPM
Operating ambient temperature: 0°C to 50°C; operating liquid temperature: 0°C to 60°C
Ordering / part numbers and optional kits as listed above
