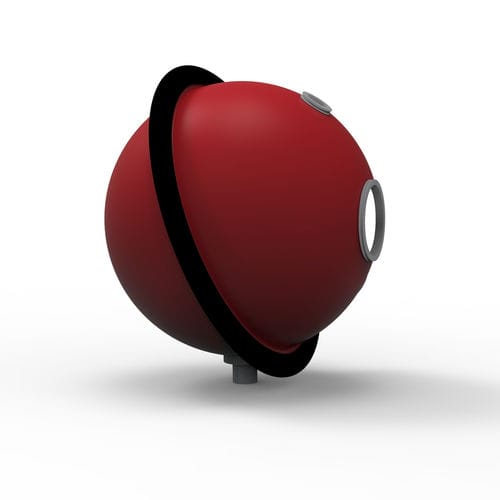

Integrating sphere ISD-15

ISD-15 Integrating sphere detector base sphere The ISD-15 is used as a base sphere for setting up of integrating sphere detectors. Its measurement port has a 38.1mm diameter. The detector port is aligned at a 55° angle to the measurement port. A socket with an M6 connector is used for mounting. Reflective coating made of barium sulfate The ISD-15 is coated with Gigahertz-Optik‘s self-manufactured ODP97 barium sulfate diffusely reflective coating. The multilayer coating guarantees diffuse reflective properties over the entire usable spectral range. Standard options Port reducer for the measurement port Baffle between the measurement port and detector. Necessary for highly divergent radiation beams SMA light guide connector Opening with plug for auxiliary lamp Complementary products and services For further enhancement of the ISD-15, Gigahertz-Optik offers a wide range of port adapters and sphere accessories. These can be connected with radiation detectors and light meters for various applications. In addition, the Gigahertz-Optik calibration laboratory for optical radiation measurands performs traceable calibrations of the integrating sphere radiation detectors.
