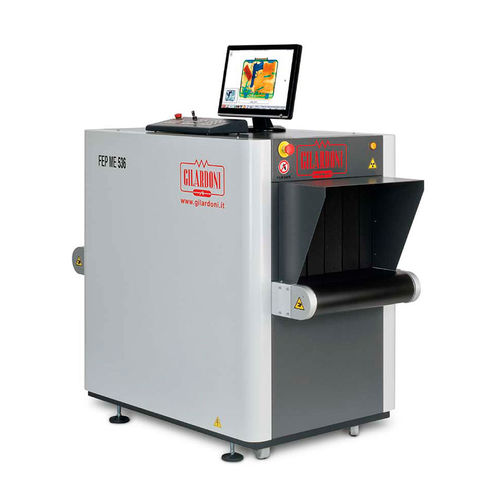

Inspection scanner FEP ME 5362DPOSfor the food industry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2D
- Applications
- inspection, security, for baggage, for the food industry, POS
- Technology
- X-ray
- Configuration
- compact, modular
- Other characteristics
- high-resolution, high-precision, rugged, color, LCD
- Length
1,524 mm
(60 in)- Width
770 mm
(30 in)
Description
■ Dimensions: 1524mm (L) x 770mm (W) x 1212mm (H)
■ Weight: 400kg
■ Inspection tunnel size: 506mm (W) x 360mm (H)
■ Conveyor belt height: 690mm (adjustable)
■ Belt speed: 0.2m/s
■ Maximum bag weight: 165kg
■ 1 monitor LCD widescreen
■ Power supply: Monophase 230VAC or 110VAC +/- 10%
■ Frequency: 50/60Hz +/- 3Hz
■ Power absorption: ≤ 1Kva
■ Duty cycle: 100%
OPTIONS
■ ADS, TIP, NetServer and TIPNet
■ Digital image archiving (AIMS)
■ AIMS Networking
■ Modular roller tables
■ Remote workstation(s)
■ 2nd level remote display workstation(s)
■ UPS
■ Smart-card login
HEALTH AND SAFETY
The system fully meets the applicable international regulations for X-Ray equipment
■ Leakage dose at 10cm: < 1.0μSv/h (0.1mR/h)
■ Film safety: guaranteed up to ISO 1600/33 DIN
