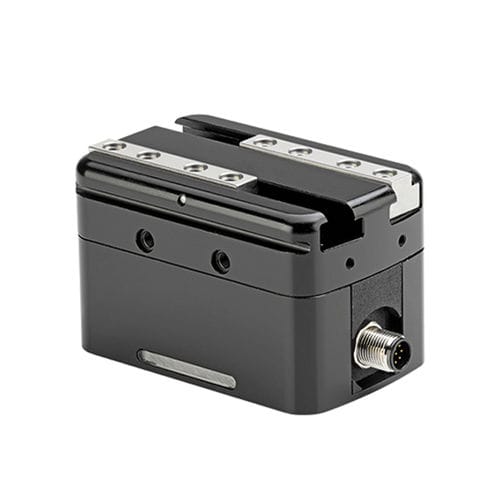

Self-centering gripper MPCF series
electricparallel2-jaw

self-centering gripper
self-centering gripper
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
parallel
Number of jaws
2-jaw
Application
for heavy loads
Options
self-centering, maintenance-free, IP40
Grip strength

Max.: 470 N

Min.: 160 N

Stroke

35 mm
(1.378 in)

Description

• Long life Brushless motor (Brushless DC). • 24 Vdc Low voltage power supply. • M12-8 poles standard connection. • Embedded drive with dual CANopen communication interface and RS485 Half Duplex. • Can be operated in real time as a generic device adhering to the CANopen DS-402 standard. • Alternative operation developed by Gimatic that simplifies its use, based on the recall of movements and recipes of pre-set parameters. • Dedicated Windows application to simplify and speed up setup and testing. • User guide and software included in the downloadable folder directly from the Gimatic/Download/Utility website. • Self-centering system. • 10 milion cycle maintenance-free. • T-slot style jaws for heavy loads. • Weight-dimensions-force best trade off. • Optional magnetic sensors. • Absolute linear encorder on the jaws
