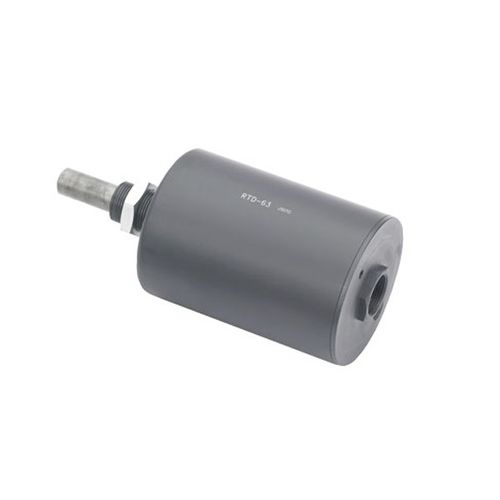

Stop unit RTD

The intermediate stopping unit RTD is a stroke reducer, acting against the rack of the swiveling unit RT, by a piston rod. The RTD piston bore is larger than RT and, pressurized at the same pressure, it stops in the middle the RT stroke. When not pressurized a spring keeps the RTD piston rod against the RT rack.
