Steel weighbridge BPPSE EVO

metalfor vehiclesmodular

Product overview

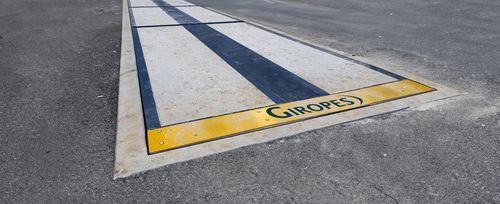

BPPSE EVO is a modular truck scale with a completely flat running surface and a total height of 300 mm, designed for above-ground or recessed installation. Its modular construction allows factory or on-site concreting and adaptation to specific site requirements.

Key features

• Completely flat running surface with rough concrete finish to reduce vehicle skidding risks.
• Modular steel modules with reinforced mesh provide a durable structural frame.
• Modular design enables easy transport, assembly and maintenance; central plate available to customize platform width and improve cleaning access.
• Can be concreted in the factory (reducing on-site assembly and drying) or concreted on site; option with formwork welded to the platform.
• Optional galvanized finish for enhanced corrosion resistance.

Versions

• BPPSE EVO (3.0 m) — built in 1.5 m modules. Available capacities: 30 t, 60 t and 80 t (depending on configuration).
• BPPSE EVO XC (3.0 m) with 300 mm central plate — built in 1.35 m modules. Available capacities: 30 t and 60 t.
• BPPSE EVO (3.3 m) with 300 mm central plate — built in 1.5 m modules. Available capacities: 30 t and 60 t.
• BPPSE EVO (3.5 m) with 500 mm central plate — built in 1.5 m modules. Available capacities: 30 t and 60 t.

Available capacity / length configurations

• 30 t — Length 6 m — Height 300 mm — Load cells: 4 — Galvanized option: yes
• 30 t — Length 8 m — Height 300 mm — Load cells: 6 — Galvanized option: yes
• 30 t — Length 10 m — Height 300 mm — Load cells: 6 — Galvanized option: yes
• 60 t — Length 12 m — Height 300 mm — Load cells: 6 — Galvanized option: yes
• 60 t — Length 14 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 60 t — Length 16 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 60 t — Length 18 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 60 t — Length 20 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 60 t — Length 21 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 60 t — Length 22 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 60 t — Length 24 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 60 t — Length 26 m — Height 300 mm — Load cells: 12 — Galvanized option: yes
• 80 t — Length 12 m — Height 300 mm — Load cells: 6 — Galvanized option: yes
• 80 t — Length 14 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 80 t — Length 16 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 80 t — Length 18 m — Height 300 mm — Load cells: 8 — Galvanized option: yes
• 80 t — Length 20 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 80 t — Length 21 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 80 t — Length 22 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 80 t — Length 24 m — Height 300 mm — Load cells: 10 — Galvanized option: yes
• 80 t — Length 26 m — Height 300 mm — Load cells: 12 — Galvanized option: yes

Technical characteristics / specifications

• Brand: Giropes
• Commercial name / model: BPPSE EVO
• Total height: 300 mm
• Running surface: completely flat; rough concrete finish for anti-skid
• Structure: steel modules with reinforced mesh
• Module sizes: typically 1.5 m modules (some versions in 1.35 m)
• Central plate widths: 300 mm and 500 mm depending on version
• Installation types: above-ground (on-ground) or recessed (pit); factory or on-site concreting
• Capacities: configurations for 30 t, 60 t and 80 t
• Load cell count: varies by capacity and length (see configurations list)
• Optional galvanized finish: yes

Applications and accessories

• Designed for truck weighing in industry, logistics sites, waste and recycling facilities, quarries, energy plants and other heavy-vehicle installations.
• Available accessories: guide rails, perimeter angles, metal ramps, troughs, head frames, galvanized finish and site-specific parts to adapt installation.

Integration

• Compatible with Giropes automation: terminals, GST self-service stations and management software (Gestnet2, Gestruck2) for integrated weighing workflows and operations control.
