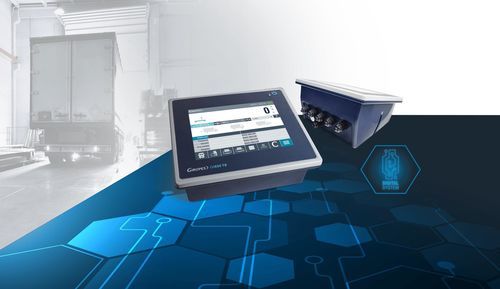

Weight indicator with touchscreen GI650D ABS

wall-mountIP65IP54

GI650D ABS is a touchscreen weighing indicator in an ABS enclosure designed for weighbridges using digital load cells. It provides real-time monitoring of each load cell's internal calculations and supports truck weighing, database import/export and remote management via PC software.

Key features

• 8-inch resistive touch screen — operable with gloves or objects while maintaining accurate input.
• ABS housing designed for industrial installations; IP54 protection standard, IP65 available with optional wall support.
• Digital architecture allowing real-time control of internal calculations for each weighbridge load cell.
• Truck weighing firmware option to manage weighbridge operations and totalization.
• Data transfer functions: import/export of data and databases to/from the indicator.
• Compatible PC software (GIMANAGER) for remote control and management.

Standard communications

• 2 × RS232
• Ethernet
• USB

Optionals

• WiFi communication board (optional; if fitted, WiFi disables Ethernet)
• ALIBI / DSD memory module
• RS485 output
• Internal rechargeable battery (provides operation during power failures)

Technical specifications

• Model: GI650D ABS
• Brand: Giropes
• Application: Weighbridges with digital load cells
• Housing: ABS (IP54 standard; IP65 optional with wall support)
• Display: 8-inch resistive touch screen
• Firmware options: Totalizer (standard); Truck weighing (optional)
• Data functions: Database import/export (data transfer)
• Software: GIMANAGER for remote control and management (PC)
• Optional features: WiFi board (disables Ethernet), ALIBI/DSD memory, RS485, internal rechargeable battery
• Documentation available: Product presentation and user manual (see downloads)
