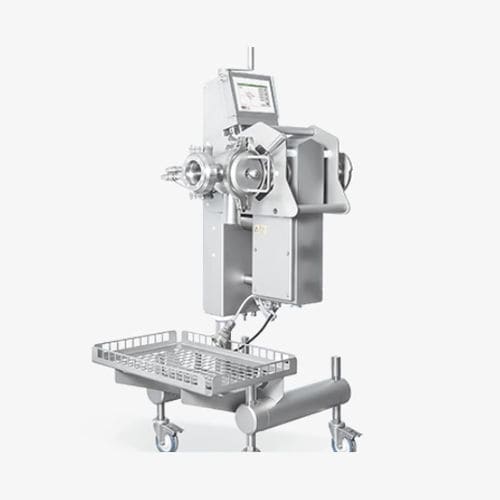

Tunnel type metal detector GMD-S

packaging machinefor pipeworkintegrated

The GMD-S metal detector is designed for sausage production lines with automatic filling systems and provides reliable inspection for dense mixtures and high-viscosity food pastes. It ensures accurate detection of metallic contaminants to maintain food safety and production continuity.

Key features

• Metal detection: Detects ferrous, non-ferrous and stainless-steel metals in products with high density and high viscosity.
• Full compatibility: Integrates easily with calibration equipment via gear link systems to maintain precise line synchronization.
• Mobile structure and design: Mobile design allows quick and safe installation and straightforward integration with common filling systems.
• Adjustable inlet height: Designed to adapt to various production line layouts and filling machines.

Caractéristiques / spécifications techniques

• Inlet height: 950 – 1250 mm (adjustable with hand crank)
• Max. outlet pressure: 55 bar (rotary slide valve 40 bar)
• Pipe connection: Rd 80 × 1/4” / HP
• Free pipe diameter: 57 mm
• Weight: 150 kg
• Storage temperature: −10 °C … +60 °C
• Operating temperature: −10 °C … +50 °C
• Protection class: IP69K
• Filling machine control cable: Includes cable and connector (specify filling machine when ordering)
• Electrical connection: 230 VAC; 50–60 Hz; 100 W
• Pneumatic connection: Max. 6 bar, filtered, dry and oil-free; self-sealing coupling – NW 7.2 fitting
• Options: Rejection system – Pneumatic piston
