2-color flexographic press max. 700 x 400 mm, 150 m/min | OFFLINE FLEXO 353

for plastic film

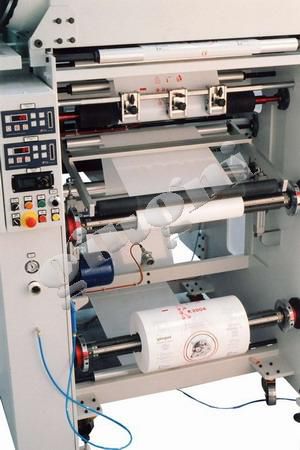

This reel-to-reel flexo printing station is the ideal solution to unwind, print in one or two colours and rewind plastic film reels in an easy, practical and reliable way. It is made up of an unwinding-rewinding unit and two printing units, one Miniflex 389-700-Variant and one Miniflex 347-250. The unwinding-rewinding unit is suitable for reels with 800 mm width and 600 mm diameter of a wide range of different materials, among them HDPE, LDPE, and PVC. Both the unwinding and the winding axis are equipped with pneumatically expanding reels-holding shaft for a fast and easy reel change. Moreover, the unwinding axis has a film tension control by means of a load cell. The unit is also equipped with a drying system complete with fan, exhauster, a blower and connection pipes. It has also a web guide for a perfect realignment of the rewinded reel sides.Two flexo printing units are mounted on the system to print in one or two colours. The first colour is printed by a Miniflex 347-250 passive that means that the equipment receives the motion directly by the material to be printed by means of rubber dragging rings. This machine has max. printing area of 250 x 500 mm (other possible developments from 300 to 700 mm are possible using other printing rollers) and can reach a max. working speed of 50 m-min.
