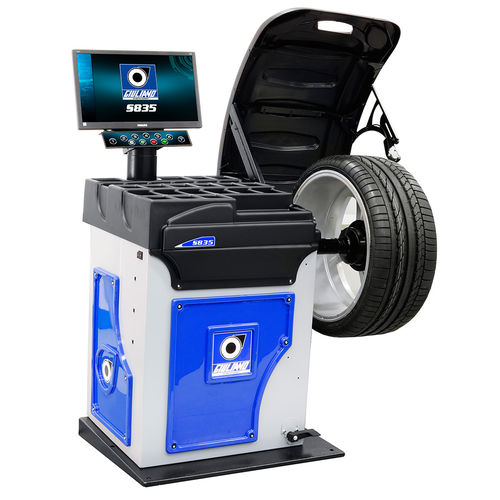

Car wheel balancer S 835
automatic

car wheel balancer
car wheel balancer
car wheel balancer
Add to favorites
Compare this product


Characteristics

Applications
for car
Other characteristics
automatic
Max wheel weight

75 kg (165 lb)

Max wheel diameter

1,100 mm (43.3 in)

Rim diameter

Min.: 255 mm (10 in)

Max.: 765 mm (30.1 in)

Rim width

Min.: 40 mm (1.6 in)

Max.: 510 mm (20.1 in)

Description

19" TFT High Definition Monitor 19” TFT flat-screen, high-res colour monitor. Fast & Easy Split Fast & Easy Split (FES) divides the counterweight needed to correct imbalance, based on the installation position behind the spokes of the aluminium rim. Requires a very simple, very quick operation without the need to enter the number of spokes or other preliminary data. The fastest Split system out there!! No Wheel Needed “No Wheel Needed” (NWN) system for calibrating gauges. The gauge shaft or Sonar detector is positioned at a given distance from the fixed points established for the procedure, without the need for using sample wheels. Opposite Weight Function Opposite weight function (OWF) positions the counterweight at the bottom of the aluminium rim (at 6:00), where manual installation of the weight is easier and more accessible. The function requires a very simple operation, combined with a 180° rotation of the rim. Digital electronic 2D wheel-balancer with video display, laser line and led light Features Flat screen HD color video monitor 19” TFT; Automatic measuring of wheel diameter and distance; Automatic START and STOP; Positioning pedal; Static and dynamic balancing; Huge combination of ALU programs; NWN System; Special ALU-S program; FES function; OPTIMATCH function; Self-diagnosis; Self-calibration; OPF function; Optimization of static unbalance; CLIP system for application of stick-on weight; Complete with cones and quick clamping ring nut; Complete with Wheel guard; Laser line for exact positioning of adhesive weights; LED light on working area; Automatic measuring of wheel width by SONAR (LA) available as optional (factory mounted only).
