Stainless steel thermostatic bath BK40 M
digital displayfor temperature sensorsopen tank

stainless steel thermostatic bath
stainless steel thermostatic bath
stainless steel thermostatic bath
stainless steel thermostatic bath
stainless steel thermostatic bath
stainless steel thermostatic bath
Add to favorites
Compare this product

Characteristics

Options
stainless steel, digital display
Product applications
for temperature sensors, open tank
Field
laboratory
Temperature

Min.: -40 °C (-40 °F)

Max.: 125 °C (257 °F)

Description

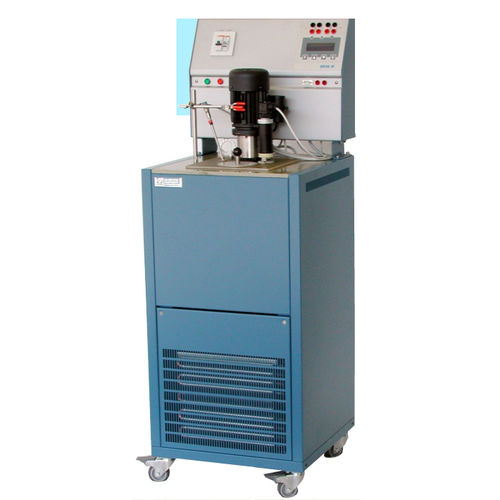

The BK40 M bath is an instrument used to calibrate transducers, RTD and temperature-measuring sensors in the field and in the laboratory. The possibility to generate positive and negative temperature ramps makes it suitable for use in calibrating and testing thermostats. TECHNICAL CHARACTERISTICS: The BK40 M bath consists of a stainless tank with capacity of 10 litres, useful height 340 mm and diameter 85 mm. The bath is equipped with a stainless steel mixer with electrical motor power, a safety thermostat, drain cock and overflow drain pipe. BK40 M is equipped with a new PID microprocessor controller with a resolution up to 0,01 °C, setting of the standard of measurement in °C, °F e K, programming of ascent/descent ramps and storage of the thermostats’ operative temperature. The instrument is also equipped with an acquisition card having two adjustable inputs (Pt100 3/4 wires; thermocouples: J, K, N, R, S) with bushes fitted with gold-plated contacts and automatic compensation of the cold junction. The first input is provided for the reference sample probe, thus obtaining a complete calibration system which can be certified by SIT centres, in compliance with ISO 9000 regulations. The second input is provided for probes that are being tested; hence, the instrument can display the temperatures of the furnaces, the temperature of the sensor to be checked and of the reference sample probe, at the same time
