injector abrasive blasting room / manual



  • Technology:


  • Operational mode:


  • Width:

    1,000 mm, 1,250 mm, 1,500 mm, 2,000 mm

  • Height:

    900 mm

  • Depth:

    900 mm, 1,150 mm

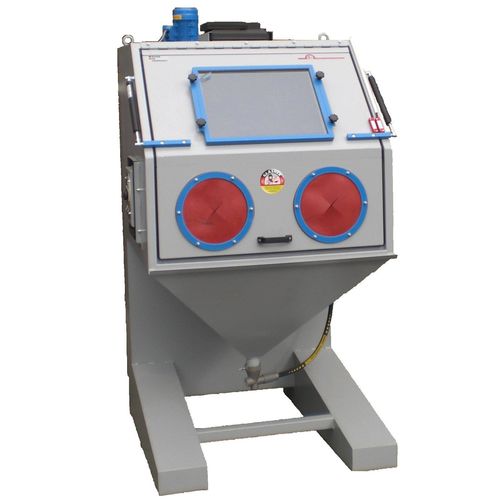

The Modellrange ECONOMIC is made of durable sheet steel. It comes with adjustable media consumption, a blast media collection bin and a sieve to separate blast media from contaminations.
The cabinet has two lateral openings with sealing sliders for rod materials. A perforated metal plate with enforcements. The system has a sectional door that opens the complete workspace. The Cabinet comes with a door-safety switch, two large operation holes with multiple rubber Sealings.
Monitoring window, sized 400x500 mm, with easy changeable glass/safety-glass panes, as well as 2 durable pneumatic springs.

Energy Saving Lamp, attached from outside. Injector-type blast head, with air- and blast nozzle made of hardened steel. The system comes with all necessary compressed air and blast media hoses, oil-water separator, manometer, an electrical magnet valve and a foot switch. On/Off switch, dust filter system 0,55 kW, intermediate pressure turbine. Dust collection bag.
Model article number: ECONOMIC
