injector abrasive blasting room / manual



  • Technology:


  • Operational mode:


  • Width:

    380 mm

  • Height:

    280 mm

  • Depth:

    570 mm

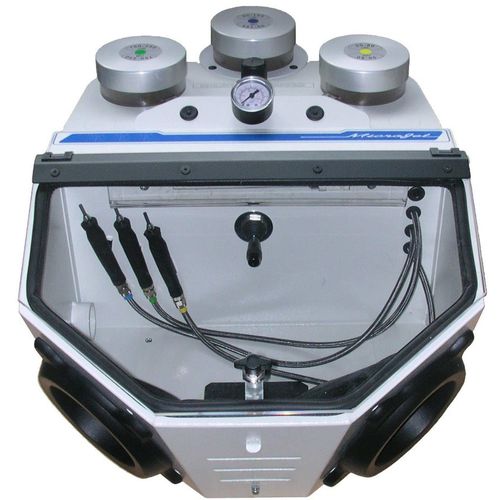

The housing is made of folded stable sheet steel and welded.
In the cabins 2 workports with built-in rubber sleeves (easily exchangeable) are incorporated. The cabin is equipped with a blast hose, nozzle holder and nozzle 1 made of hard metal. For the different requirements are made of hard metal nozzle with a diameter of 0.8 mm, 1.0 mm or 1.2 mm for selection.
All blasting medium-pressure vessel (1 - 3 Tank System) have a volume of 2 kg and provided with a closure cap. In all systems, a pressure reducing valve and a pressure gauge for setting a constant jet pressure, and compressed air supply are fitted with plug-in nipple. All systems are equipped with a pneumatic foot switch for turning on and displaying the blasting process.
Model article number: Microjet 1/2/3
