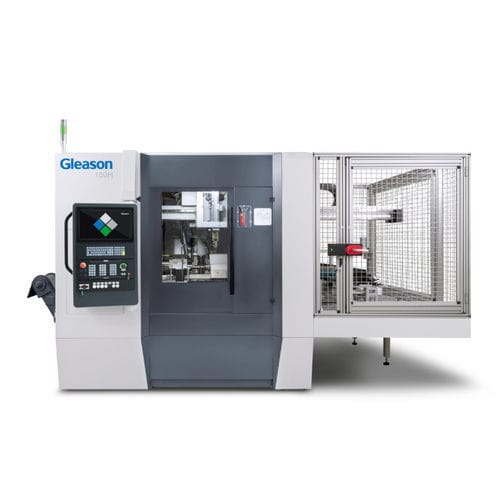

CNC gear-hobbing machine 100H

horizontal

The 100H Hobbing Machine Series is the next generation of the well-known P90 Series with improvements in design, functionality and operator inferface. This hobbing machine and its variants handle a wealth of geared profiles up to a workpiece diameter of 120 mm, module 4 and a shaft length of 1200 mm. Axial slide travel, max. - 400/800* mm Short Cycle Times Extremely fast cutting and processing times make the 100H series ideally suited for the large batch production of gears and pinions. Integrated Chamfering/Deburring The model version 100HiC features an integrated chamfering/deburring unit applying chamfer rolling to eliminate burrs on tooth flanks. Hobbing and Parallel Radial Chamfering on 100HCD for Workpieces with Interferences Machine is enhanced with an additional radial chamfering station with chamfer cutting which works time parallel to the hobbing process. Hobbing of Shafts Up to 1200 mm with the extended 100HL. Suited for a Wealth of Applications Pump gears are just one of many different applications that the 100H is well adapted for. GEMS Operating Software for Ease of Use Mainly equipped with the GEMS® Operating Software, the 100H series provides for intuitive and graphic operation, guided setups and interactive programming via touch screen. Steering Pinions, Worms and Worm Gears The 100H is suitable for the production of worm-type workpieces, including the hard finishing of steering pinions by skive hobbing. Quik-Flex Horizontal Workholding The 100H series can be optionally equipped with the Quik-Flex® Horizontal Workholding for fast change over.
