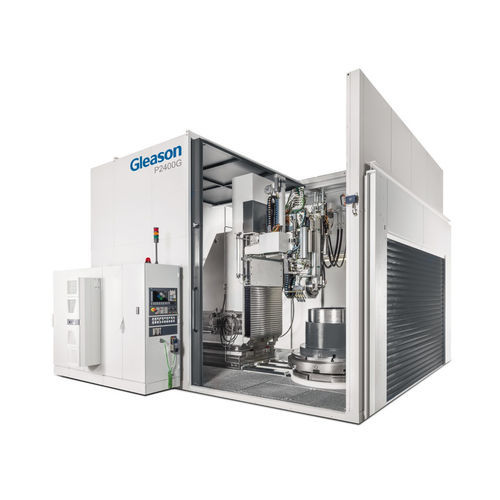

Cylindrical grinding center P series

for gearsworkpiecefor large workpieces

Overview
The P Series large profile grinding machines are designed for flexible production of large-diameter gears requiring accurate profile grinding. Models range from P2000G to P6000G to cover different workpiece dimensions and production needs.

Technical data
Workpiece diameter, max.: 6,000 mm
Profile depth, max.: 120 mm
Axial travel, max.: 2,200 mm

Applications

• Profile grinding of external gears
• Profile grinding of internal gears
• Grinding of gears with special geometries using small wheel diameters

Flexible production

• Different external grinding heads for various wheel diameters to match production requirements
• Dedicated internal grinding heads and arm configurations for internal gear geometries

On-board gear inspection
Integrated machine-mounted inspection measures internal and external gear geometry. Measured data can be processed and exported according to common industry standards.

Automation solutions
Machines can be supplied with automated pallet changers and zero-point clamping systems on request for integration into automated production lines.

Benchmark technologies
Gleason provides profile grinding technologies and patent-protected solutions to support high-precision, productive gear manufacturing.

Characteristics / technical specifications

• Series: Large P Series (P2000G to P6000G)
• Workpiece diameter, max.: 6,000 mm
• Profile depth, max.: 120 mm
• Axial travel, max.: 2,200 mm
• Profile grinding of external and internal gears; also suitable for special geometries using small wheel diameters
• Different grinding heads available for various external and internal wheel dimensions
• Integrated on-board inspection for internal and external gears; data output compatible with industry standards
• Optional automation: automated pallet changers with zero-point clamping systems
