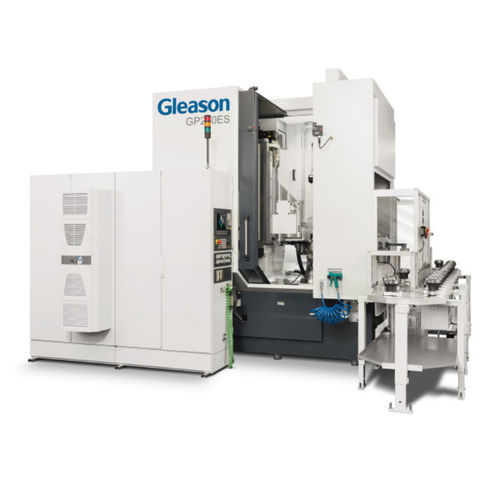

CNC gear-hobbing machine GP series

vertical

Designed for shaping spur and helical gears, internal and external gears, crowned and tapered gears and deep recessed internal gears, the GP Series is available in two model sizes GP200S and GP300S. The GP Series can be upgraded with the Electronic Shaping Guide Option. Built to Last The dynamically rigid and thermally stable machine is complemented by an extremely rigid tool holder. Small or Large Batches The machines of the GP Series are equally suited to cut large batches, small lots or single workpieces. Helical Guide Changed in Little Time The unique design of the hydrostatic spindle guide allows for minimum changeover time between straight and helical guides. The GP200S and the GP300S are the perfect candidates for high productivity environments. For more flexibility, choose the Gleason ES Option. More Flexibility – The Revolutionary ES Option Electronic Shaping Technology (ES) allows the operator to change the workpiece helix angle by simply entering the required values in the dialog program. The software calculates all the necessary machine settings for you! Simple Operation Dialog-guided input enables operators to rapidly change from one workpiece to the next. New jobs are entered while the existing job is still in production. Automated Tool Change The optional tool changer allows shaper cutters to be changed automatically for a higher level of productivity – also well suited to machine multiple gears on one workpiece with less effort.
