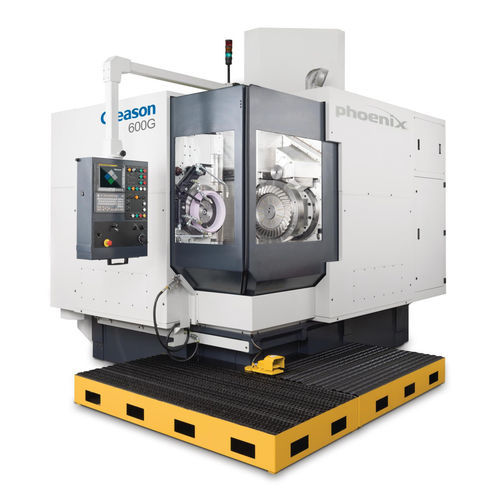

Gear grinding machine Phoenix 600G
workpieceCNCautomated

gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
gear grinding machine
Add to favorites
Compare this product


Characteristics

Applications
workpiece, for gears
Control type
CNC, automated
Other characteristics
high-precision, high-productivity, high-speed, compact

Description

Higher speeds and increased torque, combined with shorter and faster motions dramatically increases productivity. Workpiece diameter, max.600 mm Range of tooth numbers1-300 Wheel diameter, max.20" Built to Last High quality, greater accuracy and repeatability due to rigid monolithic machine column design. Highly Versatile Flexibility and versatility for different part geometries, such as spiral, hypoid, straight bevel, face clutches, face gears, hypoloids and super reduction hypoids. First Part Checking Operators like the integrated first part measuring cycle with its automated correction feature for easy and fast setup until the first part is ground to perfection. Extremely Compact Larger parts produced in a very small space - 35% smaller footprint than any other machine in its class. Easy to Operate Equipped with powerful Fanuc 30i control and Gleason's user-friendly software to empower even less experienced operators. Quick-Change Coolant Pipe Design For faster changeover and higher process stability.
