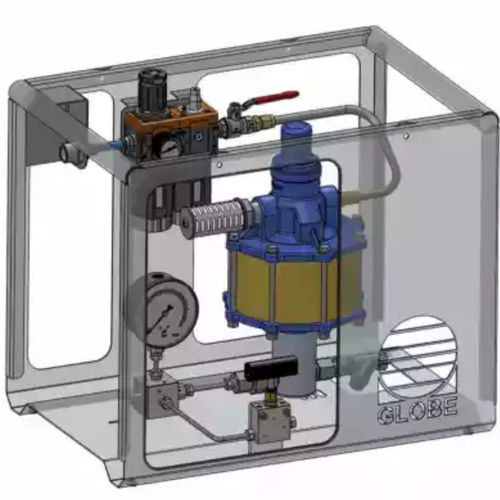

Hydraulic power unit for high-pressure applications APU SC10-6 series

air-drivenfor testing machinevalves

The APU SC10-6 Series (Large) is the largest and most powerful model within the air-driven high pressure test systems from GLOBE Test Equipment. This system is designed for heavy hydrostatic testing where high pressure, large volume and continuous reliability are required. Thanks to its strong stainless steel frame and precise pressure control, it is ideal for testing vessels, hoses, cylinders and other pressure-containing components. Durable Construction The system is fully constructed from stainless steel components, ensuring long service life and minimal wear, even under intensive use. The glycerine-filled pressure gauge provides stable and clear pressure readings during every test. Specifications & Performance Portable: Yes Frame: Stainless steel Ratio: 5:1 to 740:1 Maximum working pressure: 35 to 4480 bar (65,000 psi) Volume per stroke: 9290 to 2 cc Flow rate: 65 to 0.48 l/min Options Extra handles or wheels Test certificate Digital display Pressure transmitter The SC10-6 Large combines power, precision and durability in one compact system. Do you have specific requirements? Our specialists will gladly help you configure the right setup.
